Specifications
Hydrogen Generator for boiler:
1.100% Safe
2. Environment Friend 3.30% higher efficiency
4. Energy Saving, Low Cost
Application of machine
Hydrogen generator is able to separate clean soft water (H2O) into hydrogen and oxygen gases, using a small amount of electric power through a special process.
These gases are then mixed and delivered for use in a wide variety of applications, such as heating, brazing, cutting, etc. Which currently use LPG or other gas for fuel. When burned,
This fuel generates no green house gases or pollutants, and burns at virtually 100% efficiency. This certainly has the potential for becoming the most significant advancement in fuel
For the 21st century.
Hydrogen oxygen became water after burned. An engine attached to the wall and the wall of the exhaust pipe, the wet soil is melted into a liquid, and driven by exhaust pressure is discharged outside the vehicle. Achieved internal self-cleaning process.
Usage:
1. Jewelry Industry
A. For welding kinds of chain and string made of platinum, gold, silver, copper, stainless steel, etc.
(1). For mending tiny sand holes on jewelry casting
(2)For jewelry repairing (reforming, casting, welding)
2. Electronic Industry
For welding enameled wire, welding LED wafer, flame-treating circuit boar
3. Medical Industry
(1) For welding metal fittings and mending sand holes in dentistry
(2) No-carbon flame disinfection or glass seal
4. Moving carbon for car
Advantage of hydrogen generator for boiler:
Features:
1. Energy Saving more than 30% compared with trational acetylene flame.
2. Without any pollution.
3. The cost of electricity and water reduces more than 40% compared with acetylene flame.
4. Unique design of flashback arrestor, electrolysis trough and circulatory cooling system make the machine sfe and reliable, stable performance.
5. Excellent welding and cutting quality.
6. All controls can be done just by one knob.
7. Except for flame welding and cutting, other welding and cutting funtions can be added according to customers require, this function en-strong the machines adsptability.
8. Portable, flexible and movable.

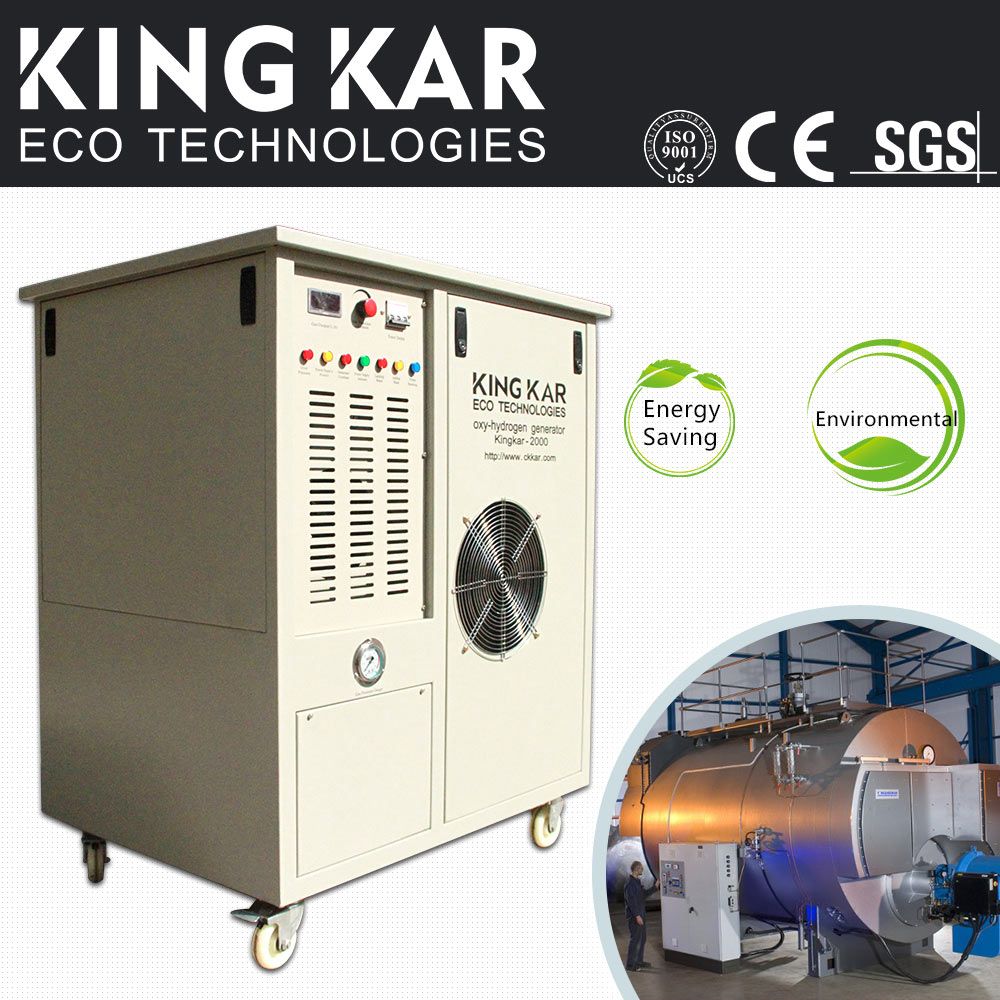

Technical Data Sheet of Kingkar oxy-hydrogen generator in boiler combustion:
| Model | Kingkar-3000 | Kingkar-5000 | Kingkar-7000 | Kingkar-10000 |
| Voltage(V) | 380 ±10%,50/60Hz,three phase |
| Rated capacity(KVA) | 9 | 15 | 22 | 31 |
| Working pressure(Mpa) | ≤0.2 |
| Relative humidity(%) | ≤90 |
| Rated gas output(L/H) | 3000±10% | 5000±10% | 7000±10% | 10000±10% |
| Water consumption(L/H) | 1.6 | 2.7 | 3.8 | 5.8 |
| Cooling way | Air cooling |
| Insulation class | F |
| power protection grade | IP2S |
| Flame temperature(T) | 800-3200 adjustable |
| Working medium | Filtered water or deionized water or soft water |
| Working | continuous |
| environment temperature(T) | 0-40 |
| Dimension(L×W×H)mm | 1020*770*1270 | 1250*830*1720 | 1300*930*1820 | 1500*930*1940 |
| Weight(KG) | 293 | 567 | 653 | 894 |
Thank you for visiting. Any questions, please feel free to contact us. I am Mr.Huang Renhua here.
KingKar provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.
KingKar Oxy-hydrogen generator for boiler only consumes water
And electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.
Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc
