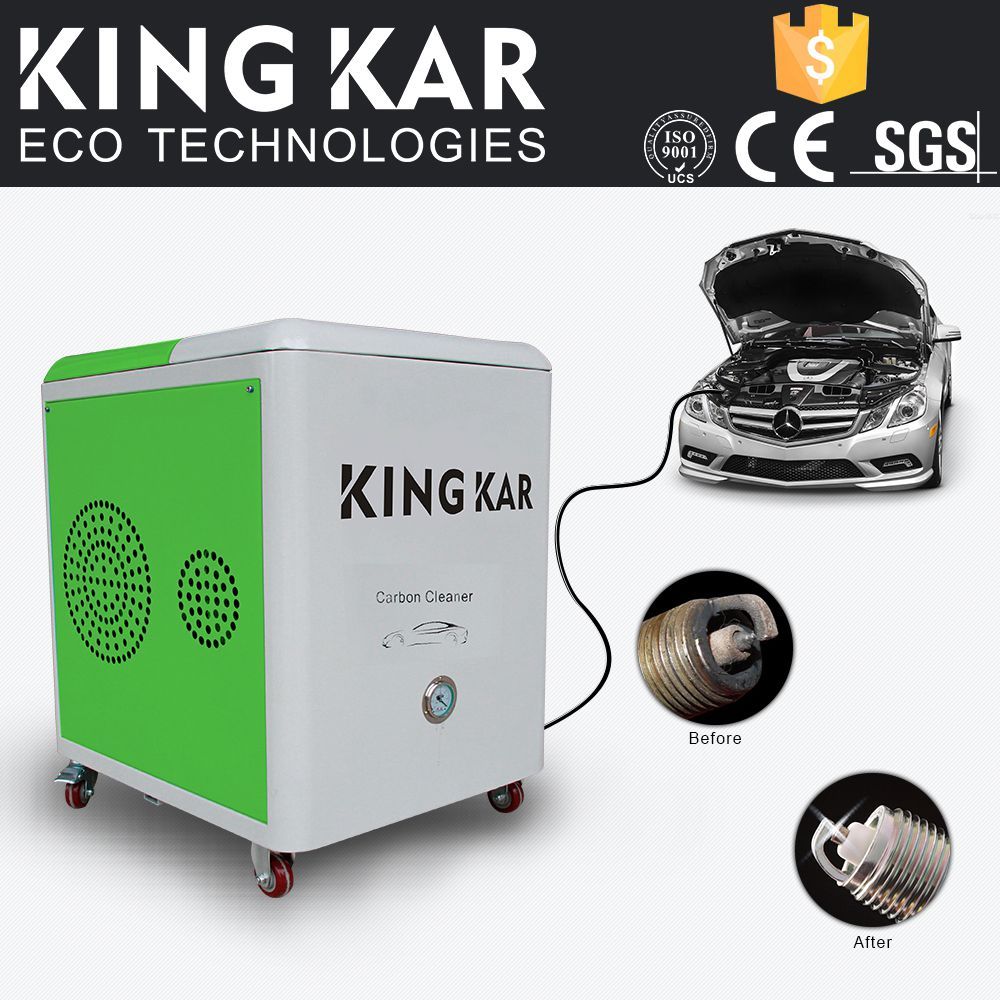

KingKar Oxy-hydrogen Carbon Clean Machine
Model: KingKar 3500
Product Introduction
Oxy-hydrogen carbon clean machine consumes water and electricity to create oxy-hydrogen gas which feeds into to the engine for cleaning the accumulated carbon and increasing the combustion efficiency of the existing fuel. Oxy-hydrogen flame is a high temperature energy source, can be used for carbon cleaning, cutting, catalytic combustion, welding, combustion, and other fields. Hydroxide flame will be reverted into water after burning, there is no environmental pollution.
Quality Analysis
1. The electrolysis power: Adopt energy-efficient IGBT power supply, have a high efficiency power, with stable and reliable electrolytic current. The gas output is stable and adjustable, high-capacity power supply designed can ensure hydrogen energy machine twenty-four hours long uninterrupted work.
2. Electrolytic cell: Use high temperature and acid engineering materials to achieve a modular design. Good corrosion resistance, high efficiency gas production to ensure the long-term use of cell shape and not leaking.
3. Clean water and gas separation: Adopt high-speed rotating water vapor separation technology and condensing gas separation technology. The gas is pure and clean, flame characteristics is first class.
4 Liquid connection fittings: Connecting parts are made of stainless steel hard pipe connections to prevent liquid leakage occurs. Even in the tempering, it won't rush off connecting tubes.
Convenient Operation
1. Hydrogen gas used for cutting, welding, heating, complete with the same use of acetylene.
2. Hydrogen energy machine to achieve an integrated design, as long as there is water and electricity, it can work. Don't store gas, it is very safe. In the practical process, it does not require transportation, warehousing and staff guards. Both safe and easy; Not only save manpower, but also save space.
3. Machine sets over temperature protection, overvoltage protection, water protection. Built-in temperature compensation function, over-temperature electrolysis current is automatically adjusted to ensure the continuous operation; Pressure control stops the boot automatically; Supplement the water when shortage. Therefore, it is very easy to operate, as long as turn on the power switch and ignite after 10 seconds, then you can use it. Other actions are finished automatically by the machine.
Advantage
After using our Kastar Micro Molecules Carbon Clean Machine, deposited carbon is completely cleaned away, engine efficiency is increased, power and performance are restored, life expectancy is improved and engine emissions are reduced. The accelerator becomes light, horsepower is increased.
Reduce HC discharge (hydrocarbon) by 76%, CO 74%. The fuel oil can be saved immediately by 10% and reach to 20% after running 500km. Do carbon cleaning one time every year, drive new car every day. It can prolong the engine life.
Technology parameter
Item No. Kater2000
Voltage(V) Three-phase 380V / 220 V(50-60)Hz± 10%
Rated Capacity(kVA) 6
Max Gas Output(L/H) 2000
Water consumption(L/H) 0.8
Working Continuous
Flame temperature(C) 800-2000 adjustable
Working pressure(Mpa) 0.08
Environment temperature(C) 0-40
Power supply protection grade IP21S
Insulation protection grade F
Dimension(L*W*H mm) 750× 560× 800
Weight (KG) 160
Items | Kingkar 3500 | Chemical Foam Method |
Medium | Oxy-hydrogen gas | Chemical additve |
Operation Time | 20-30 mins | 60 mins |
Operability | Without disassemblingthe engine, Only connect the inlet pipe | Needto disassemblethe engineby hand. Spend long timesandhigh laborcost |
Advantages /disadvantages | Simple to connetc; the engine runs at idle | Complicated and repetitive; carbon removal incomplete |
Environmental protection | New energy, no pollution, energy saving | Air pollution, waste water |
Cost (Retail) | Carbon cleaning process | Chemical foam, engine oil, engine oil filter |
KingKar provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.
KingKar Oxy-hydrogen generator for boiler only consumes water
And electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.
Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc
