Electric Motor Strip Electrical Part

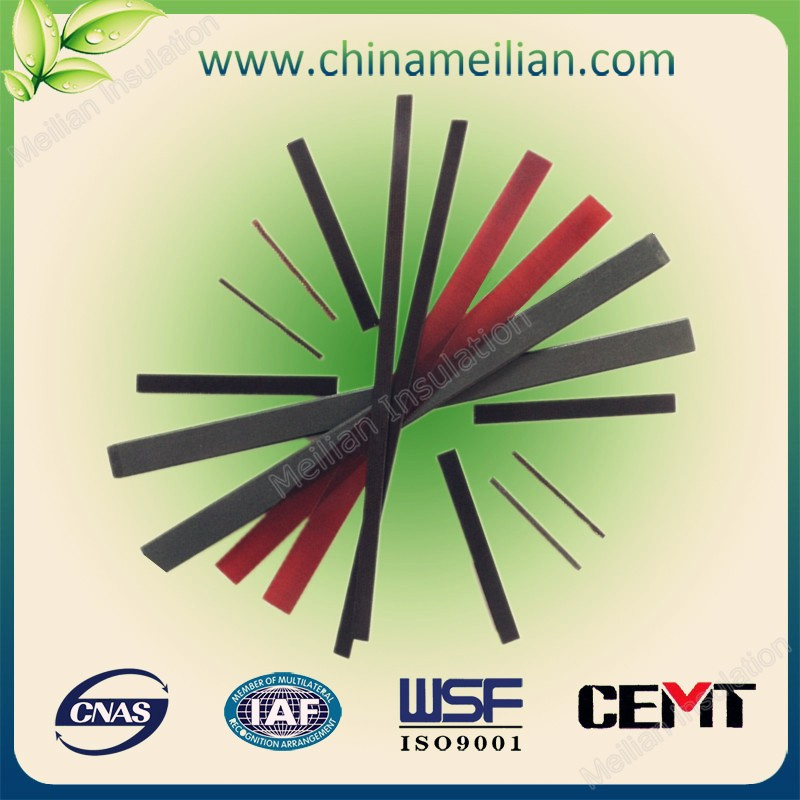

G11 Epoxy Stator Slot Wedge

Feature:

Excellent mechanical property
Heat resistance property
Excelletn magnetic permeability
Energy-saving & Environmental protection
Application:

Motor and generator groove strip/slot wedge
Reduce the motor loss, temperature rising, noise and etc
Improve the motor efficiency
Ideal energy-saving products






----------------------------------------------------------------------------------------------------------------------------------------

Company Information
Our Company Covers an Area of about 5000 Square Meters, Construction Area of About 2200 Square Meters.

----------------------------------------------------------------------------------------------------------------------------------------
We Take Place In Domestic & International Exhibition Fair Like CWIEME in Berlin/Shanghai, CW CIEMME in Guangdong, Cross-Straits Electric Motor & Appliance Exposition in Taiwan and etc.
----------------------------------------------------------------------------------------------------------------------------------------
We Have Over 50 Sets of Production & Testing Equipments Which Insure Us The Annual Production Capacity 360 Tons of Magnetic Conductive Sheet, 240 Tons of Insulating Sheet, 80 Tons of Insulation Varnish. Production is Strictly Under Control.
----------------------------------------------------------------------------------------------------------------------------------------
We Have Over 10 Years in Manufacting Magnetic/None-Magnetic Insulation Laminte, Slot Wedge, Insulation Tube, Fiberglass Varnish Cloth, Thermal Expansion Sheet, Insulation Varnish, Mica Tape and Processed Machining Components.
----------------------------------------------------------------------------------------------------------------------------------------
We have passed ISO 9001-2000 and got our own patent technology, Xi'an city Science and Technology Bureau identified us as "High-Tech Enterprises"
----------------------------------------------------------------------------------------------------------------------------------------
Our Business Scope Is All Over The World, A. O. Smith Is One of Our VIP Customers.
----------------------------------------------------------------------------------------------------------------------------------------
Excellent Service and Operation Team Ensure 100% of Your Profit

----------------------------------------------------------------------------------------------------------------------------------------
FAQ:

(1) Can you give me a discount price?

It is depending on the volume. The larger the volume is, the more discount you can enjoy.

(2) How can I get a sample?

Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL, FEDEX, EMS, UPS courier account number to us. For bigger sizes, it depends.

(3) How can you deal with quality issues that customer feedback after receiving the goods?
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.

Basic Information
Product name	Epoxy Fibeglass Insulation Laminated Slot Wedge
Item No.	MJ-G11
Brand	MJ
Material	Epoxy resin and Alkali free fiberglass cloth
Grade	Grade F
Technical Specification
Density	≥1.7g/cm3
Appearance	Natural color Dark brown, surface smoothly  without bubble  and impurities, no flow marks,  Cutting edge without  fault and separation
Sheets Thickness	0.1-50mm
Size	≥1220x980mm
Formation methods	High temperature and high pressure
Thermal stability in 24h	≥200°C
Water absorption	≤6.5mg
Impact strength parallel to laminations (Charpy)	≥45.3 KJ/m 2
Flexural strength perpendicular to lamination	≥473 Mpa
laminations (Charpy) Dielectric strength perpendicular to laminations (in 90±2°C transformer oil,1mm in thickness)	≥10.7 MV/m
Breakdown voltage parallel to laminations (in 90±2°C transformer oil)	≥40 kV
Voltage resistance parallel to layer (at 90°C±2°C oil for 1min)	≥30 kV
Insulation resistance after impregnated in water	1.5*10 13  Ω
Combustibility	HB Class
Dielectric constant (1MHz)	5.14
