Generator Manufacturers and Factories

Home Generator Products Insulation Material Epoxy Glass Parts, Electronic Board Spare Parts

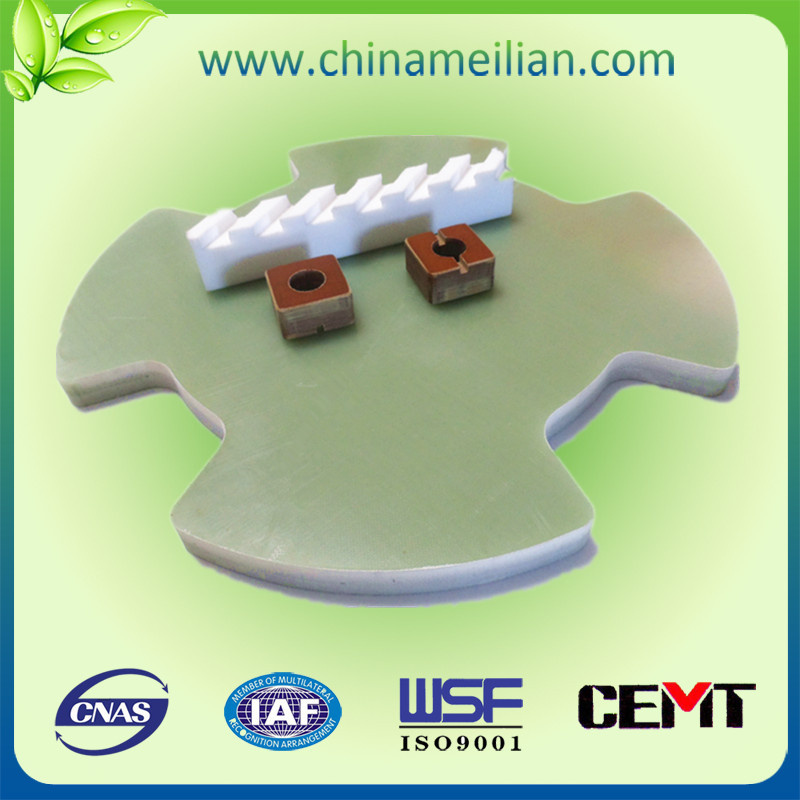

Insulation Material Epoxy Glass Parts, Electronic Board Spare Parts

Insulation Material Epoxy Glass Parts, Electronic Board Spare Parts
Price: Negotiablekg
Trade Terms: FOB,CFR,CIF
Min Order: 1kg
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
FR4 Epoxy Stator Slot Wedge

Feature:

Excellent mechanical property
Heat resistance property
Excelletn magnetic permeability
Energy-saving & Environmental protection
Application:

Motor and generator groove strip/slot wedge
Reduce the motor loss, temperature rising, noise and etc
Improve the motor efficiency
Ideal energy-saving products

Our products:


Packaging & Shipping


We Accept All Kinds of Payment
----------------------------------------------------------------------------------------------------------------------------------------

Company Information
Our Company Covers an Area of about 5000 Square Meters, Construction Area of About 2200 Square Meters.

----------------------------------------------------------------------------------------------------------------------------------------
We Take Place In Domestic & International Exhibition Fair Like CWIEME in Berlin/Shanghai, CW CIEMME in Guangdong, Cross-Straits Electric Motor & Appliance Exposition in Taiwan and etc.
----------------------------------------------------------------------------------------------------------------------------------------
We Have Over 50 Sets of Production & Testing Equipments Which Insure Us The Annual Production Capacity 360 Tons of Magnetic Conductive Sheet, 240 Tons of Insulating Sheet, 80 Tons of Insulation Varnish. Production is Strictly Under Control.
----------------------------------------------------------------------------------------------------------------------------------------
We Have Over 10 Years in Manufacting Magnetic/None-Magnetic Insulation Laminte, Slot Wedge, Insulation Tube, Fiberglass Varnish Cloth, Thermal Expansion Sheet, Insulation Varnish, Mica Tape and Processed Machining Components.
----------------------------------------------------------------------------------------------------------------------------------------
We have passed ISO 9001-2000 and got our own patent technology, Xi'an city Science and Technology Bureau identified us as "High-Tech Enterprises"
----------------------------------------------------------------------------------------------------------------------------------------
Our Business Scope Is All Over The World, A. O. Smith Is One of Our VIP Customers.
----------------------------------------------------------------------------------------------------------------------------------------
Excellent Service and Operation Team Ensure 100% of Your Profit

----------------------------------------------------------------------------------------------------------------------------------------
FAQ:

(1) Can you give me a discount price?

It is depending on the volume. The larger the volume is, the more discount you can enjoy.

(2) How can I get a sample?

Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL, FEDEX, EMS, UPS courier account number to us. For bigger sizes, it depends.

(3) How can you deal with quality issues that customer feedback after receiving the goods?
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
Basic information
Product name FR4  Epoxy Stator Slot Wedge
Item No.MJ-FR4
BrandMJ
MaterialEpoxy resin and Alkali free fiberglass cloth
GradeGrade B
Feature
Excellent mechanical & electric property                                                                                                               Good heat & moisture resistance                                                                                       Easy for processing & machining
Application
Can be processed into  high temperatue insulating structural parts installed in a variety of motors and electrical equipmenst, or processed into motor slot wedges, standard and non-standard shaped parts
Technical Performance
Density≥1.7g/cm 3
AppearanceNatural color Green, surface smoothly without bubble and impurities, no flow marks, Cutting edge without fault and separation
Sheets Thickness0.1-50mm
Size≥1220x980mm
Formation methodsHigh temperature and high pressure
Thermal stability in 24h≥200ºC
Water absorption≤6.5mg
Flexural strength perpendicular to lamination≥473 Mpa
Impact strength ≥66.3 KJ/m 2
Dielectric strength perpendicular to laminations (in 90±2°C transformer oil,1mm in thickness)≥10.7 MV/m
Breakdown voltage parallel to laminations (in 90±2°C transformer oil)≥54.6 KV
Insulation resistance after impregnated in water≥1.5*10 13 Ω
Dielectric constant (1MHz)5.14
CombustibilityHB Class
Reference StandardGB/T1303.1-1998
Prod Model: MJ-FR4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Custom-Made: Yes
Sample: Free
Application: Generator
Type: Insulation Sheet
Chemistry: Organic Insulation
Material: Fiberglass
Thermal Rating: B 130
Maximum Voltage: >100KV
Brand: Mj
Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services "
