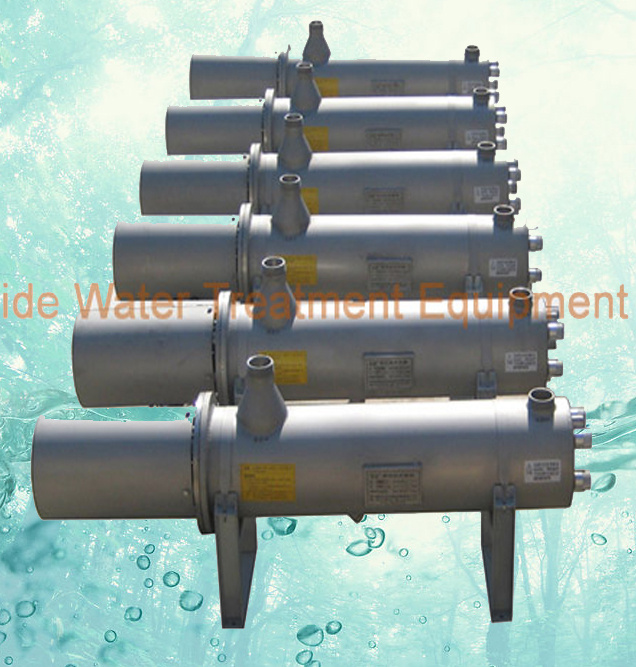

Electric Cleaning UV Sterilizer for Military Camp Water Treatment
1. Description of uv sterilizer
1. Flow: 1-1000m3/H
2. UV through the quartz sleeve rate≥ 90%
3. High Bactericidal Efficiency≥ 99%
4. No Secondary Pollution
5. Safe and Reliable Operation
6. Simple Operation and Maintenance, Low cost
7. Large Amount of Water Disinfection
2. Applications
1. Water disinfection of food processing industry, including juices, milk, drinks, beer, practical oil, and all kinds of canned food, beverage products
2. Ultra-pure water for electronic industry.
3. Hospitals, various laboratory water disinfection, and high levels of pathogenic body water disinfection.
4. Water disinfection applications, including residents of households building, residential, office building, hotels, restaurants, water factory.
5. Fish processing purification and disinfection, purification and disinfection of shellfish, fish cleaning and disinfection process.
6. Military camp, field water supply system.
7. Urban wastewater disinfection, the maximum capacity of up to 1 million tons or more per day.
8. Swimming pool, other recreational water disinfection water.
9. Cooling water disinfection, including thermal power, nuclear power plant cooling water, industrial cooling water, cooling water, central air conditioning system.
10. Biological, chemical and pharmaceutical, cosmetics for the production of cooling water.
11. Sea water, fresh water breeding, aquaculture (fish, eel, shrimp, abalone, shellfish, etc. ) water, the total treated water up to 200 thousand tons per day or more.
12. Agricultural water disinfection, including greenhouse water use and irrigation.
| Model No |
Flow Rate (m3/h) |
All Lamps Power (W) | In / Outlet inch |
Chamber dimensions (mm) |
| mm | inches |
PDCn-050 |
2 |
40 |
25 |
1" |
1000×Φ89 |
PDCn-150 |
6 |
80 |
32 |
1-1/4 |
1000×300×Φ108 |
PDCn-200 |
8 |
120 |
40 |
1-1/2 |
1000×400×Φ159 |
PDCn-300 |
12 |
160 |
50 |
2" |
1000×400×Φ159 |
PDC-360 |
15 |
200 |
65 |
2-1/2" |
1000×400×Φ159 |
PDC-500 |
20 |
240 |
65 |
2-1/2" |
1000×500×Φ219 |
PDC-600 |
25 |
280 |
80 |
3" |
1000×500×Φ219 |
PDC-700 |
30 |
320 |
100 |
4" |
1000×500×Φ219 |
PDC-1000 |
40 |
360 |
100 |
4" |
1000×500×Φ219 |
PDC-1300 |
50 |
425 |
125 |
5" |
1000×570×Φ273 |
PDC-1500 |
60 |
620 |
150 |
6" |
1700×570×Φ273 |
PDC-2000 |
80 |
775 |
150 |
6" |
1700×570×Φ273 |
PDC-2500 |
100 |
930 |
150 |
6" |
1700×570×Φ273 |
PDC-3000 |
125 |
1085 |
150 |
6" |
1700×570×Φ273 |
PDC-4000 |
150 |
1240 |
200 |
8" |
1700×570×Φ325 |
PDC-5000 |
200 |
1550 |
200 |
8" |
1700×570×Φ377 |
PDC-7000 |
300 |
2170 |
250 |
10" |
1700×570×Φ426 |
PDC-10K |
400 |
2480 |
|
|
|
PDC-15K |
600 |
3100 |
|
|
|
Note | PDCn-050 to PDC-100 using 40w UV lamp
PDC-1300 using 87w UV lamp
PDC-1500 to PDC-12k using 155w UV lamp
PDCn is threaded connection, PDC is flange connection |
Drain inch | 1/2" threaded |
Lamp useful life | Standard 9000 Hours |
UV lamp brand | "Lightsource" from USA |
Single UV lamp | 40w in general. We can aslo supply 75w, 85w, 155w, 240w, 320w |
UV lamp select | If you need we can aslo supply UV lamp which can generater ozone |
Chamber pressure | Rated to 0.6Mpa. If you need higher pressure, please tell me |
Water temperature | The appropriate temperature is 4 - 50 DEGREE (-5-60 degree range) |
Packing | Wooden packaging |
Optional | UV intensity monitor system |
| Water temperature monitor system |
| Time accumulator system |
| Cleaning system: Maunal cleaning, Pneumatic cleaning and Electric cleaing |
FEEL FREE TO CONTACT US WITH ANY QUESATIONS YOU MAY HAVE!
