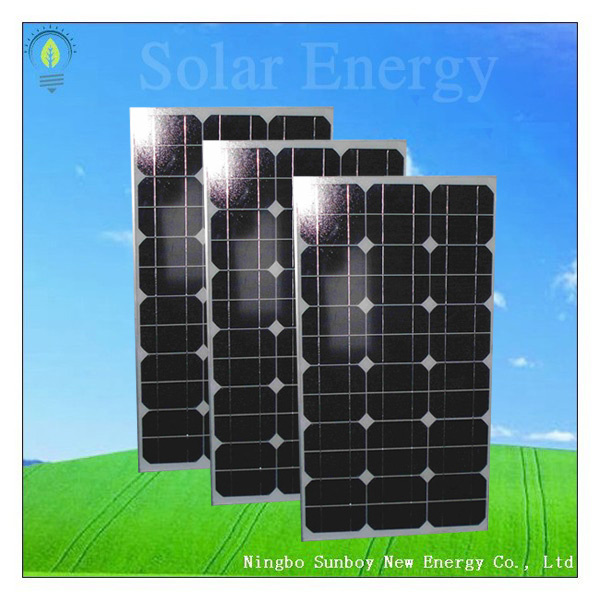

Efficient A-grade 45W Mono PV Panel for 12VDC Solar Garden Lights
1. Type: Mono PV Panel
2. Max Output Voltage: 17.8V
3. Max Output Current: 2.63A
4. Solar Cell: A-grade with efficiency above 16%
5. Glass: Anti-reflection tempered glass
6. Frame: Anodized aluminum alloy frame
7. Application: Solar garden lights, solar street lights
8. Working Temperature: -40 to +80 degree centigrade
9. Life Expectancy: 25 years
10. Guarantee: 5 years
Description & Features
1. 36PCS efficient mono solar cells in series connection to get an output voltage of 17.8V and output power of 45W;
2. The PV panel is finely laminated with quality tempered glass to ensure good performance, water- and dust-proof, hail-resistant and with a long life span of 25 years;
3. This mono PV panel is standard designed to charge 12V battery, widely applied in solar garden lights, solar street lights and other solar powered products.
Applications
Solar garden lights
Solar Street lights
Solar power systems
|
Solar Panel Data Sheet |
|
Product Name: |
Efficient 45W Mono PV Panel |
|
Model Number: |
SBG45W-0312M |
|
Place of Origin: |
ZheJiang of China |
|
Solar cell spec: |
Monocrystalline silicon solar cells |
|
Specifications: |
Monocrystalline solar module with maximum output of 45W |
|
No. of cells and connections: |
3*12=36pcs |
|
Application: |
12VDC system |
|
Max. system voltage: |
715V DC |
|
Series fuse rating: |
10A |
|
Power tolerance: |
± 3% |
|
Surface max. load capacity: |
60m/S(200KG/sq. m) |
|
Weight: |
5kg |
|
Dimensions: |
415*845*23mm |
|
Electrical characteristics: |
|
Open circuit voltage(V): |
21.6V |
|
Short circuit current(A): |
2.78A |
|
Max. power voltage(V): |
17.8V |
|
Max. power current(A): |
2.63A |
|
Temperature coefficients of Isc(%): |
0.1/° C |
|
Temperature coefficients of Voc(%): |
-0.33/° C |
|
Temperature coefficients of Pm(%): |
-0.23/° C |
|
Temperature coefficients of Imp(%): |
0.08/° C |
|
Temperature coefficients of Vmp(%): |
-0.33/° C |
|
Module efficiency(%): |
≥ 14.5% |
|
FF(%): |
75% |
|
Conditions (STD): |
|
Irradiance: |
1000W/M 2 |
|
Temperature: |
25° C |
|
Absolute maximum rating: |
|
Operating temperature: |
-40° C to +80° C |
|
Storage temperature: |
-40° C to +80° C |
