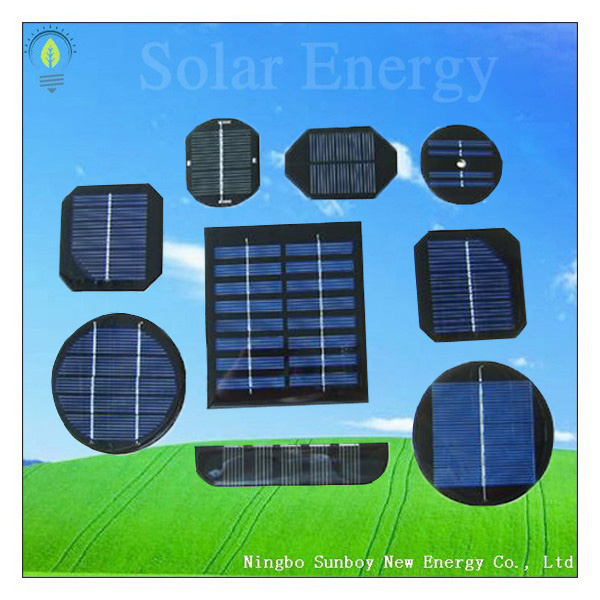

The epoxy encapsulated mini solar panel is great for the science lad. You can connect more than one panel together in series to increase power. A great little teaching tool.
Solar panels are generally designed to pump out as much current as possible, and to get voltage, you wire them up in series. We specialize in mini solar panel that generate voltage in a small area, which is generally the need when powering electrical devices.
We spend considerable effort designing, testing, and manufacturing specialized solar panels for multi-volt needs.
If you have a need for a special solar panel for your design and in large quantity (over 1000 pieces), we'd be happy to help you select or design a pane suitable for your OEM project!
|
Model No. |
Max Power |
Cell Type |
Cell Size |
Efficiency |
No of Cells |
Vmp |
Imp |
Voc |
Isc |
Size |
|
SBE0.44W-7060P |
0.44W |
Poly |
52*7mm |
0.151 |
8pcs |
4V |
110mA |
4.8V |
120mA |
70*60mm |
|
SBE0.45W-9060P |
0.45W |
Poly |
52*5.5mm |
0.145 |
11pcs |
5.5V |
82mA |
6.6V |
90mA |
90*60mm |
|
SBE0.72W-9070M |
0.72W |
Mono |
62.5*9.5mm |
0.152 |
8pcs |
4V |
180mA |
4.8V |
200mA |
90*70mm |
|
SBE0.72W-11055P |
0.72W |
Poly |
52*15mm |
0.154 |
6pcs |
3V |
240mA |
3.6V |
265mA |
110*55mm |
|
SBE1.2W-15070M |
1.2W |
Mono |
62.5*5.5mm |
0.15 |
24pcs |
12V |
100mA |
14.4V |
110mA |
150*70mm |
|
SBE1.2W-18065P |
1.2W |
Poly |
52*6.5mm |
0.148 |
24pcs |
12V |
100mA |
14.4V |
110mA |
180*65mm |
|
SBE1.4W-135130P |
1.4W |
Poly |
39*8.5mm |
0.151 |
28pcs |
14V |
100mA |
16.5V |
115mA |
135*130mm |
|
SBE1.8W-D260P |
1.8W |
Poly |
52*6.5mm |
0.148 |
36pcs |
18V |
100mA |
21.5V |
110mA |
ø 260mm |
|
SBE2.3W-140140M |
2.3W |
Mono |
62.5*125mm |
0.152 |
2pcs |
1V |
2.3A |
1.2V |
2.5A |
140*140mm |
|
SBE2.4W-150130M |
2.4W |
Mono |
62.5*13mm |
0.15 |
20pcs |
10V |
240mA |
12V |
265mA |
150*130mm |
|
SBE2W-180113P |
2W |
Poly |
52*16mm |
0.151 |
16pcs |
8V |
250mA |
9.6V |
275mA |
180*113mm |
Our company, Ningbo Sunboy New Energy Co., Ltd is a professional manufacturer of solar panels. We produce solar panels and also design and provide complete solar system solution. In the past years, we have exported our products all the world around. Our company boasts advanced equipments and facilities, capable to produce on large quantity basis.
Aimed to become a top manufacturer in this field, we put great values on product quality. And high-quality is our first policy. We care for credit, and offer the most honest service. During the years' of diligent management, our products have won full trust of a vast number of customers from all over the world.
We promise that we will never stop to improve, both our products and our service, from better to the best
