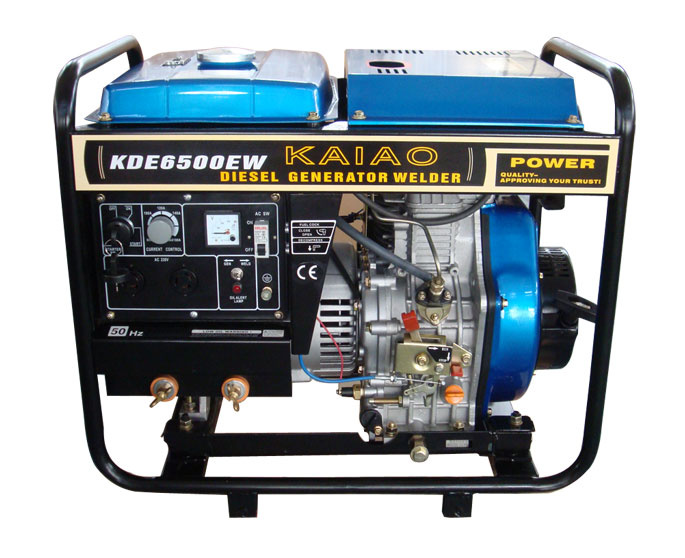

Diesel Welder Generator
1. CE&ISO9001 approved
2. Dula function integrated in one machine, convenient switch
3. Large fuel tank
Wuxi KaiAo Power Machinery Co., Ltd. Specializing in the development and manufacture of small special iar-cooled diesel engine, air-cooled diesel generator set, water pump unit, electirc welding set, micro-farming machine, construction machinery, and gardening machinery. etc.
KaiAo lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 2000 square meters. We have more than 150 staff members, among which there are around 20 are professional techinicians. Advanced production lines and inspection equipments allow high quality products.
GENERATOR /WELDER | Model | KDE6700EW |
Frequency: Hz | 50 |
Rated output: Kva | 2 |
Rated. AC voltage: V | 230 |
current: A | 8.7 |
No-load welding voltaged: V | 65 |
Rated welding voltaged: V | 26--30 |
Rated welding DC: A | 200 |
Current adjusting extension | 50--200 |
Electric welding load rate | 50% |
Phase | Single phase |
Power factor: COS | COS=1 |
Alternator type | self excited, 2 pole, single phase alternator |
Starting system: | X: Recoil Starter E/T: Electric Starter |
Operatong noise lecel(at 7m): dB(A) | X/E: 77 T: 72 |
Fuel tank capacity(L): L | X/E: 12.5 T: 15 |
ENGINE | Model | KA186FA |
Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine |
Bore × Stroke: (mm) | 86× 72 |
Fuel | Summer: 0# Winter: -10# |
Lubricatiom oil Model | SAE10W-30(above CD grade) |
Lubricatiom oil volume: L | 1.65 |
Fuel comsumption Rate(g. kw/h) | 275.1 |
Displacement: L | 0.418 |
Power/speed: KW, r/min | 5.7/3000 |
Compression Ratio | 19 |
Combustion system | Direct lnjection |
| Dimension(L*w*h) | 640*480*530 |
| net weight | 105kg |
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)
Air-cooled diesel generator light tower(400W-10000W)
Air-cooled gasoline generator (650W-5000W)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.
We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
