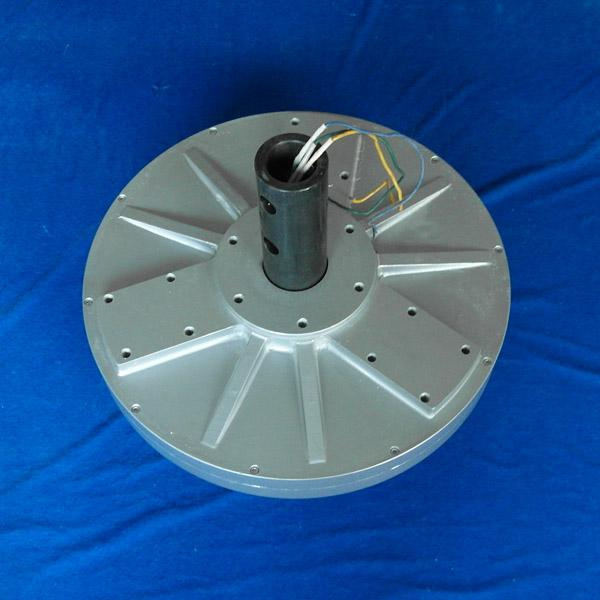

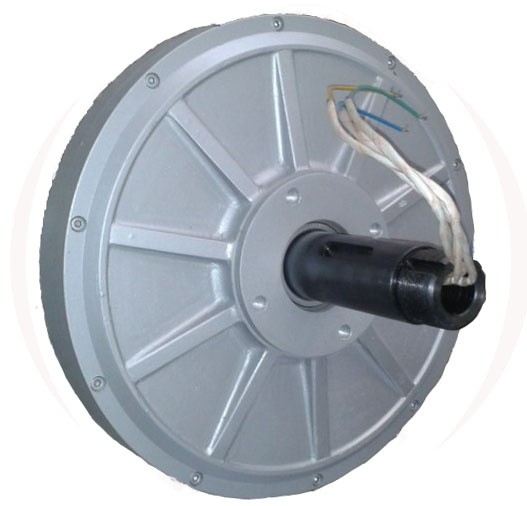

DAYUE Energy has developed a series of new energy high-efficient, disc-shaped, inner (outer) rotor, three-phase, Axial Flux Permanent Magnet Generator (AFPMG) with a coreless (ironless) stator.
AFPMG with high specific power and coreless stator is characterized by the following:
Advantages Features:High efficiency:
no mechanical drive losses, no rotor copper losses due to the permanent magnet excitation and no stator eddy current losses in the ironless(coreless) stator.Small size, small weight: plastic or epoxy resin stator core
No cogging torque, low starting torque,
Low noise, less vibration, long life
Direct drive, no gearbox , oil-free system, smooth operation
High cooling effect, low temperature rise
Main applications:1,Small electrical generators driven by gasoline or diesel engines,
2,Small wind generators,
3,Electric vehicle drive machines, as motor and generator.
Application of AFPMG offers an alternative solution in the sphere of electrical generators or electrical machines in general. Their disc-shaped construction and advantageous
electromechanical characteristics represent the main features in alternative electrical energy production and in high efficient electric drive systems.
DAYUE has made the next significant step in the research and development field of new concepts of electrical machines. The new developed AFPMG has placed the guidelines in a field.
of research of axial-flux electrical machines, especially in the area of alternative drives for electric vehicles.
AF-3KW Technical parameters: | No. | parameter | Units | Data |

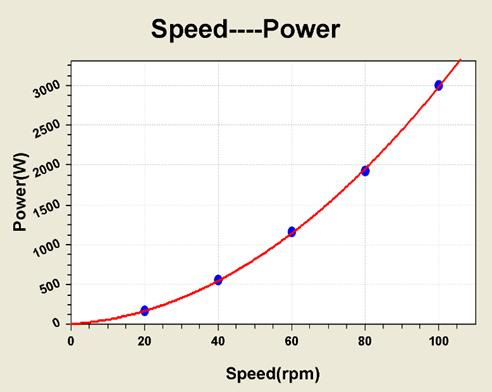

| 1 | Rated output power | KW | 3 |
| 2 | Rated speed | RPM | 100 |
| 3 | Rated output voltage | V | 380VAC |
| 4 | Rated current | A | 4.6 |
| 5 | Efficiency |
| >85% |
| 6 | Winding type |
| Y |
| 7 | Insulation resistance |
| 100Mohm Min(500V DC) |
| 8 | Voltage withstand | ma | <5 ma |
| 9 | Start torque | Nm | <0.5 |
| 10 | Temperature rise | ºC | <80 |
| 11 | Max. working temperature | ºC | <120 |

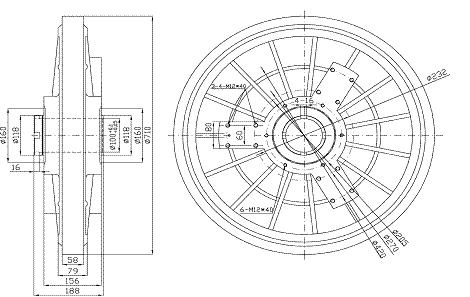

| 12 | Generator diameter | mm | 710 |
| 13 | Shaft diameter | mm | 118 |
| 14 | Housing material |
| Aluminum Alloy |
| 15 | Shaft material |
| Steel |
| 16 | Bearing |
| NSK or SKF |
| 17 | Weight | Kg | 135 |
