| Price: | US $ 108-112.2/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |

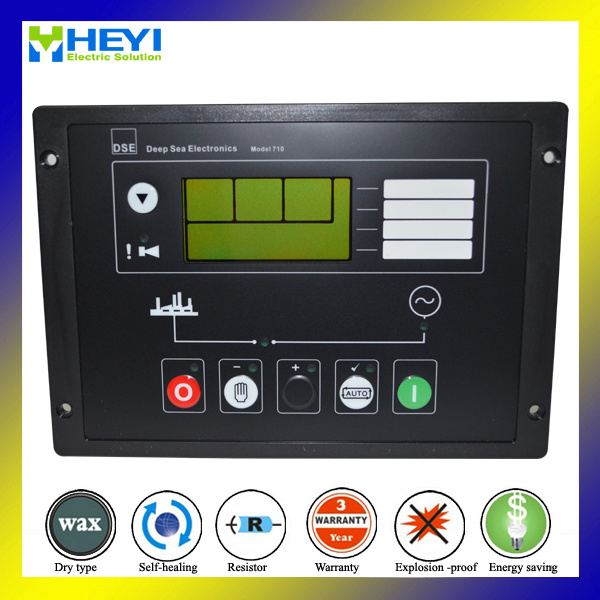

The 710 is an Automatic Start Control Module that offers an advanced range of engine monitoring and protection features. The module has been designed to monitor generator frequency, generator volts, generator current, engine oil pressure, engine coolant temperature, engine running hours and battery volts. The module also displays the engine speed. When the module detects a fault condition it automatically shuts down the engine and indicates the exact fault on the modules LCD display or relevant LED indicator. The module can be configured using the front panel or via the DSE810 interface and a PC. The module can also be controlled from a PC that is located up to 100 meters away.
Feature:
- PC/Front panel configuration
- Digital and analogue inputs
- Digital outputs
- Automatic shutdown or warning when fault conditions are detected
- Automatic/Manual/Remote start
- Engine pre-heat
- Engine monitoring and protection features
- Protected Solid State (PSS) outputs
Specification
| Power Supply | 8 to 35 Vdc Continuous |
| Cranking Dropouts: | Able to survive 0 V for 50 mS, providing supply was at least 10 V Before dropout and supply recovers to 5V. This is achieved without the need for internal batteries. |
| Max Current | Operating 180mA at 12V, 190mA at 24V ; Standby 145mA at 12V. 150mA at 24V |
| Alternator Input Range | 35V(L-N) to 277V(L-N) AC (+20%) 50Hz - 60Hz (min 15V AC) |
| Auxiliary Output: | Solid state 2.4A DC at supply voltage. |
| Fuel/Start Output: | Solid state 3.4A DC at supply voltage |
| Generator C.T. | 5A secondary 0.5VA |
| Operating Temperature Range: | -30 to +70°C |
| Biogas Power Generation |
| * Natural Gas Power |
| * Field Engineering |
| * Electric Power |
| * Factory |
| * Fire-fighting |
| Prod Model: | DSE710 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Purpose: | Brushless Generator |
| Power Supply: | 9 to 33 VDC Continuous |
| Alternator Input Range: | 15 - 305 V AC RM |
| Magnetic Input Range: | 0.5 V to +/- 80 V |
| Control Modules: | Key Start Module,Auto Start Module,Amf Start Modul |
| Function: | Electrical Genset Generator Controller |
| Usage: | Distant Control,Multi-Protection, LED |
| Max Operate Current: | 100mA at 12V 105mA at 24V |
| Frequency: | 3.5Hz to 75Hz |
| Voltage Range: | 15 V to 415 V AC (pH to N) 26 V to 719 V AC (pH to |
