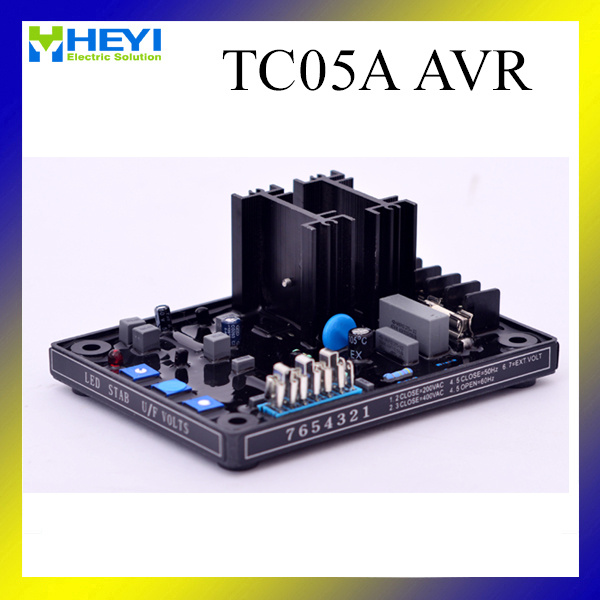

TC05A AUTOMATIC VOLTAGE REGULATOR FOR GENERATOR
Build Up Voltage | 3.5V ac @ AVR terminals |
Power Input | |
Voltage | 170-250V ac |
Frequency | 50-60Hz (Jumper Selectable) |
Sensing Input | |
Voltage | 100-130V or 170-264V Jumper Selectable |
Frequency | 50/60Hz Jumper Selectable |
Output | |
Voltage | Max.90V dc @ 207V ac input |
Current | 4A consecutive current output Transient 6A for 10 secs. |
Excitation Resistance | Min. 15 ohms |
Under Frequency Protection Set Slop | 92-94%Hz rated frequency(By factory)(UFRO) 95%Hz (By factory) 170% down to 30Hz |
Adjustment | ±1%(with 4% engine governing) |
Summary of AVR controls
Control | Function | Direction |
volts | To adjust generator output voltage | Clockwise increases output voltage |
stability | To prevent voltage hunting | Clockwise increase the damping effect |
ufro | To set the ufro knee point | Clockwise reduces the knee point frequency |
droop | To set the generator droop to 5% at full load off | Clockwise increases the droop |
trim | To match avr input to accessory output | Allows the accessory more control over aver |
Exc trip | To set over excitation trip cut off level | Clockwise increases the cut off level |
