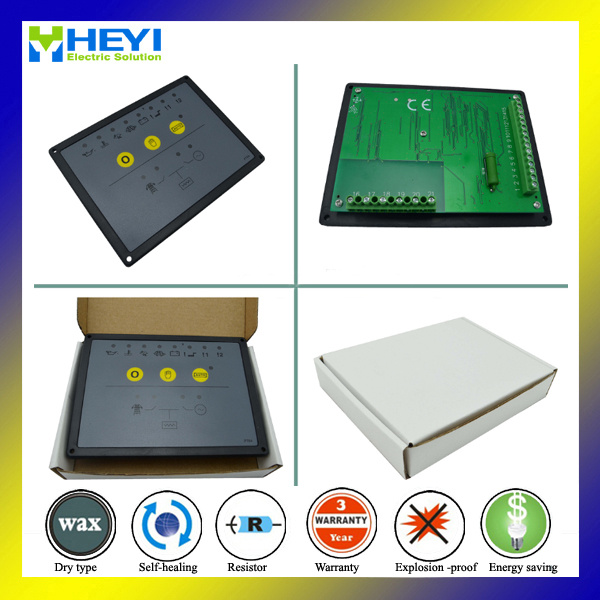

The Module 704 has been designed to monitor engine temperature, low oil pressure fail to start,
charge failure, over speed and under speed.
*Automatic mains (utility) supply monitoring
*Automatic shutdown when fault conditions are detected
*Manual start
*Engine pre-heat
*Engine monitoring and protection features
*Protected solid state (PSS) outputs
*Front panel mounting
*Front panel programming
*Remote start
*LED indicators
*Configurable timers
*Configurable outputs
*ransfers between mains (utility) and generator power
* On-site module configuration to match user requirements
* Multiple engine parameters are monitored simultaneously
Power Supply | 8 to 35 Vdc Continuous |
Cranking Dropouts: | Able to survive 0 V for 50 mS, providing supply was at least 10V Before dropout and supply recovers to 5V. This is achieved without the need for internal batteries. |
Max Current | Operating 50mA; Standby 10mA |
Alternator Input Range | 75(ph-N) to 277(ph-N) 3 Phase 4wire AC (+20%) |
Alternator Input Frequency: | 50 - 60 Hz at rated engine speed (Minimum: 75V AC Ph-N) (Crank Disconnect from 15V Ph-N @ 20Hz) Overspeed +14% (+24% overshoot) Underspeed -20% |
Start Output: | 1.2 Amp DC at supply voltage |
Fuel Output: | 1.2 Amp DC at supply voltage. |
Auxiliary Outputs | 1.2 Amp DC at supply voltage |
Charge Fail | 12V = 8V CF 24V = 16V CF |
Operating Temperature Range: | -30 to +70°C |
usage
* Biogas Power Generation |
* Natural Gas Power |
* Field Engineering |
* Electric Power |
* Factory |
* Fire-fighting |
