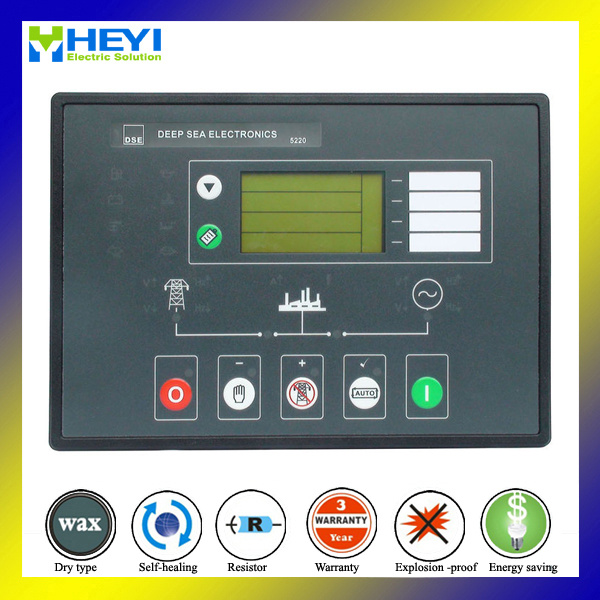

The module DSE5220 is used to automatically start and stop the engine,indicating the operational status and faultconditions by means of an LCD display and a flashing LED on the front panel.
| Power Supply | 8 to 35 Vdc Continuous |
| Cranking Dropouts: | Able to survive 0 V for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V without the need for internal batteries. |
| Max Current | Operating 320mA at 12V, 215mA at 24V; Standby 175mA at 12V, 95mA at 24V |
| Start Relay Output: | 16 Amp DC at supply voltage. |
| Fuel Relay Output: | 16 Amp DC at supply voltage. |
| Auxiliary Relay Outputs: | 5 Amp DC at supply voltage. |
| Charge Fail / Excitation Range | 0 V to 35 V |
| Alternator Input Range: | 15V(ph-N) to 300V(ph-N) 3 Phase 4wire AC (+20%) |
| Alternator Input Frequency: | 50 - 60 Hz at rated engine speed (Minimum: 15V AC Ph-N) |
| Magnetic Pick-up Voltage Input Range: | +/- 0.5 V to 70 V Peak |
| Magnetic Input Frequency: | 10,000 Hz (max) at rated engine speed |
| Operating Temperature Range: | -30 to +70°C |
| Panel Cutout: | 220mm x 160mm ( 8.7" x 6.3" |
DSE5220 Compatible deep sea ats control module generator amf controller
