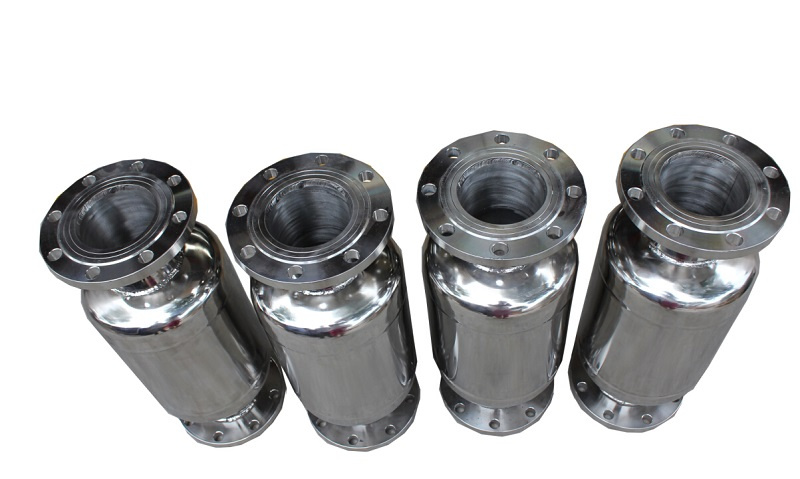

DN100 Hardness Removal Magnetic Descaling
I. Introduction
Water Treatment
Tired of hard water problems?
Our magnetic water treatment systems are specifically designed to soften water by removing scale buildup in your pipes and hot water tank. You can prevent future buildup or even remove current buildup that has accumulated over the years. Purified water is healthy for humans, animals, and plants
II. Working principle
How it works
Water is "hard" when it contains calcium, magnesium, lime scale, iron, bacteria, or minerals.
Over time, these particles will stick to pipe walls and begin to accumulate, forming scale buildup.
When a magnetic field is applied to the particles they become suspended in water, allowing them to flow with ease and avoid sticking to walls.
Our water treatment systems use powerful neodymium magnets to purify your water. Other systems use weaker, ceramic magnets. Neodymium magnets are seven times stronger than ceramic magnets!
III. Scope of application
Applications
Agriculture Irrigation
Scale and Hardness Control
Golf Course & Turf Irrigation
Well Drilling and Pump & Well Maintenance
Natural Gas Combustion
Wastewater, and More!
Technical parameters:
| model | inlet and outlet | dimension(mm) | flow rate | Vertical center | Working medium | weight |
| mm | inch | diameter*length | m 3 /h | strong magnetism (mt) | temperature
( . C) | Kg |
| YLC-1 | 25 | 1 | 108×330 | 4.9 | 160 | 0-90 | 10 |
| YLC-1.5 | 40 | 1.5 | 108×330 | 12 | 160 | 0-90 | 20 |
| YLC-2 | 50 | 2 | 159×450 | 19 | 160 | 0-90 | 30 |
| YLC-2.5 | 65 | 2.5 | 159×450 | 28 | 160 | 0-90 | 40 |
| YLC-3 | 80 | 3 | 159×450 | 50 | 160 | 0-90 | 45 |
| YLC-4 | 100 | 4 | 219×560 | 80 | 160 | 0-90 | 50 |
| YLC-5 | 125 | 5 | 219×600 | 125 | 160 | 0-90 | 60 |
| YLC-6 | 150 | 6 | 273×740 | 180 | 160 | 0-90 | 70 |
| YLC-8 | 200 | 8 | 325×790 | 320 | 160 | 0-90 | 90 |
| YLC-10 | 250 | 10 | 377×850 | 480 | 160 | 0-90 | 110 |
| YLC-12 | 300 | 12 | 426×800 | 600 | 160 | 0-90 | 130 |
| YLC-14 | 350 | 14 | 478×950 | 750 | 160 | 0-90 | 160 |
| YLC-16 | 400 | 16 | 530×1000 | 850 | 160 | 0-90 | 210 |
| YLC-18 | 450 | 18 | 630×1050 | 950 | 160 | 0-90 | 260 |
| YLC-20 | 500 | 20 | 720×1100 | 1100 | 160 | 0-90 | 330 |
Jiangsu YLD Water Processing Equipment Co., Ltd. is a high-tech enterprise, specialized in the research, development, design, manufacture, installation, technical consultation and personnel training.
We mainly produce electronic scale removal, UV sterilization, filtration, softening and cyclone grit removal technology and equipment. With strong technical force and rich experience, our company strictly implements ISO9001 system in the plan and management. "High technology leads to market development" is our basic concept.
We have extensively cooperated with domestic key universities, research institutions and foreign professional manufacturers, such as DOW (Dow) Chemical Co., Ltd., HYDRANAUTICS (Hydranautics) Company, Company (a professional manufacturer of multi-stage pumps), MILTONROY (Milton) Corporation (a metering pump manufacturer), the US Soft Controller KINETICO and OSMONICS, We have also fully introduced advanced technology. Thus, our technology is always in the leading domestic level. Over the years, our company has specialized in a variety of water treatment equipment for food, beverage, pharmaceutical, hospital, precision electronic, fine chemical, electricity, painting and surface cleaning industries.
Our "LYD" high-quality products at reasonable prices and perfect after-sales services have won great trust from worldwide customers,
We are willing to cooperate with the friends from all over the world and creat fine future together!
