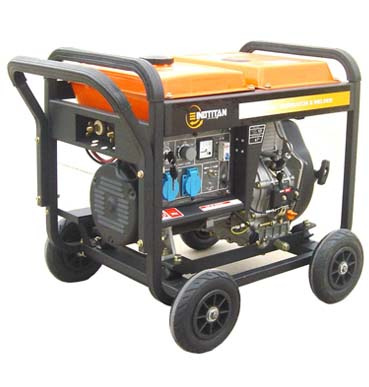

Model: TDWG6500LE
Rated frequency (Hz) 50 60
Rated power(kW) 4.5 5
Rated voltage (V) 230 240/120
Rated current (A) 19.5 20.8
No. Of phase Single
Power factor (cosφ ) 1
Weldling voltage at zero load (DC)(V) 60-70
Rated weldling current DC(A) 160
Weldling voltage(DC)(V) 25-30
Weldling load continous ratio 60%
Weldlig current adjustment range(A) 50-180
Electrode φ (mm) 1.6-4.0
Rated speed (r/min) 3000 3600
Excitation mode Self-excitation and constant voltage (AVR)
Recifying mode IGBT+three-phase rectifying bridge (PWM)
Insulation grade F
Pole number 2
Engine model KM186FAG
Engine type Single cylinder, direct injection, four-stroke, air-cooled
Displacement (ml) 418
Bore x stroke (mm) 86 x 72
Compression ratio 19
Rated power kW/(r/min) 5.7/3000 6.3/3600
Fuel type #0 (summer), # -10(winter), # -35 (chill cold)light diesel
Lube oil brand L-CED Grade 15W30 or 15W40
Fuel consumption (g/kw. H) ≤ 340
Fuel tank capacity (L) 16
Continous running time (hr) 10
Overall dimension (mm)(L x W x H) 910 x 520 x 740
Dry weight (kg) 191
Starting system Electric starter
Noise level (at rated load) dB(A)/7m 70
Structure type Silent
Changzhou Titen Power Machinery Co., Ltd. is a leading and professional manufacturer in terms of advanced production machinery and testing devices as well as an updated management team spirit. We specialize in engines, generators, water pumps, power equipment and some other electric components such as industrial plugs and sockets.
With a workshop area of 10, 000 square meters and 180 professional staff, we have got the approval certificates of ISO9001, CE and EPA in some competitive products series such as TD 186F. Titen now has an annual capacity of as many as 300, 000 sets, most of which are exported to the potential markets in the US, Europe, Australia, Southeast Asia, and so on.
Our products enjoy much popularity and credibility among our overseas customers. If you are interested in our products, please feel free to contact us for more information. We are looking forward to cooperating with you in the near future.
