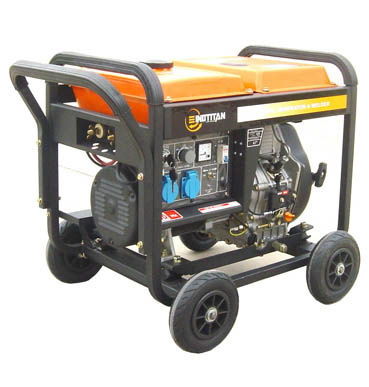

Model: TDWG5500LE
Rated frequency (Hz): 50 60
Rated voltage (V): 230 240
Rated current (A): 9.6 10.42
Rated output power (KVA): 2.2 2.5
Rated rotation speed (rpm): 3000 3600
Rated welding DC current(A): 160
Rated welding work voltage(V): 26
Welding load continuous ratio: 40%
Current regulation range(A): 50-180
Power factor (cosφ): 1
Phase number: Single phase
Overall dimension [mm(in)]: 660*470*565(25.98*18.5*22.24)
Dry weight [kg(lbs.)]: 102(224.4)
Structure type: Open-frame type
Continuous running time(at rated load): 12 hours
Excitation mode: Self-excitation and constant voltage(AVR)
Starting system: Electric starter
Engine model: TD186FE
Engine type: Single cylinder,4-stroke,air-cooled,direct injection,diesel engine
Rated power [KW(Hp)/rpm]: 5.7(7.75)/3000 6.3(8.57)/3600
Fule: 0#(summer)-10#(winter)light diesel oil
Lube: SAE10W30 (above CC grade)
Fuel tank Capacity[L(gal.)]: 12.5(2.75)
Changzhou Titen Power Machinery Co., Ltd. is a leading and professional manufacturer in terms of advanced production machinery and testing devices as well as an updated management team spirit. We specialize in engines, generators, water pumps, power equipment and some other electric components such as industrial plugs and sockets.
With a workshop area of 10, 000 square meters and 180 professional staff, we have got the approval certificates of ISO9001, CE and EPA in some competitive products series such as TD 186F. Titen now has an annual capacity of as many as 300, 000 sets, most of which are exported to the potential markets in the US, Europe, Australia, Southeast Asia, and so on.
Our products enjoy much popularity and credibility among our overseas customers. If you are interested in our products, please feel free to contact us for more information. We are looking forward to cooperating with you in the near future.
