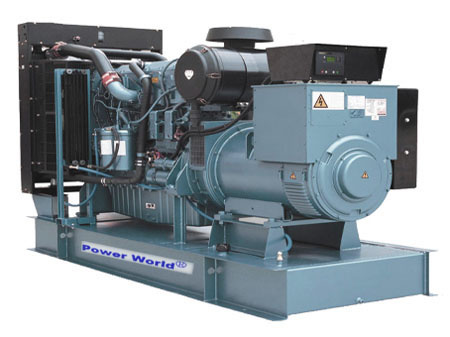

Diesel generator set
POWER WORLD diesel generator set adopt imported engines originally manufactured by Perkins, UK. The engines adopt the latest technology and high quality grind-proof materials to make sure first level products, furthermore match the world famous alternators, strict tests before sale, the technology and quality can reach the best international standard. It features at low oil consumption, stable performance, easy maintenance, low operation cost, low emission, some models can reach EPA, Emission standard, which is an ideal power system of prime and standby usage.
Diesel generator set main features:
Genuine engines
Small size, light weight
High strength low carbon steel welded bedplate
Whole hoisting and installation, built-in shockproof device
Advanced coating makes it wear-resisting
8-10 hours base fuel tank, open type/silent type is optional
Electronic injection series adopt the advanced electronic fuel management system(ECM)
|
Power World PERKINS Diesel Generator Set Technical Data (50HZ) |
|
Genset Type |
Frequency 50Hz Power Factor 0.8 (delay)400V 3Phase 4Wire |
Rate Fuel Consumption |
Cummins Series Engine Model (1500rpm) |
Open frame Dimension |
N. W.
(kg)
|
|
Prime Power |
Standby Power |
Diesel (L/h) |
Engine |
|
(KW) |
(KVA) |
(KW) |
(KVA) |
L *W*H(mm) |
|
P 27PU |
24 |
30 |
27 |
33 |
7.1 |
1 103A-33G |
1 720*730*1560 |
520 |
|
P 40 PU |
36 |
45 |
40 |
50 |
10.7 |
1 103A-33TG1 |
1 720*730*1560 |
800 |
|
P 53PU |
48 |
60 |
52.8 |
66 |
13.9 |
1 103A-33TG2 |
1 720*730*1560 |
800 |
|
P 57PU |
52 |
65 |
57.2 |
72 |
14.8 |
1 104A-44TG1 |
2 240*730*1470 |
1000 |
|
P 70PU |
64 |
80 |
70 |
88 |
18.7 |
1 104A-44TG2 |
2 240*730*1470 |
1080 |
|
P 88PU |
80 |
100 |
88 |
110 |
22.6 |
1 006TAG |
2 240*730*1500 |
1150 |
|
P 120PU |
108 |
135 |
120 |
150 |
31.5 |
1 006TAG2 |
2 380*730*1550 |
1250 |
|
P 154PU |
140 |
175 |
154 |
193 |
38 |
1 306-E87TAG1 |
2 953*990*1717 |
1990 |
|
P 165PU |
150 |
188 |
165 |
206 |
40 |
1 306-E87TAG2 |
2 953*990*1717 |
2009 |
|
P 180PU |
166 |
208 |
180 |
225 |
46 |
1 306-E87TAG3 |
2 953*1003*1717 |
2020 |
|
P 200PU |
180 |
225 |
200 |
250 |
49 |
1 306-E87TAG4 |
2 953*1003*1717 |
2060 |
|
P 220PU |
200 |
250 |
220 |
275 |
55 |
1 306-E87TAG6 |
2 953*1003*1717 |
2138 |
|
P 280PU |
250 |
313 |
280 |
350 |
63 |
2 306-E14TAG1 |
3 100*1110*2065 |
3200 |
|
P 300PU |
280 |
350 |
300 |
375 |
70 |
2 306-E14TAG2 |
3 100*1110*2065 |
3300 |
|
P 360PU |
320 |
400 |
360 |
450 |
81 |
2 306-E14TAG3 |
3 100*1110*2065 |
3400 |
|
P 400PUA |
360 |
450 |
400 |
500 |
96 |
2 806-E16TAG1 |
3 300*1150*2197 |
3940 |
|
P400PUB |
360 |
450 |
400 |
500 |
95 |
2506C-E15TAG1 |
3300*1150*2197 |
3900 |
|
P440PUA |
400 |
500 |
440 |
550 |
104 |
2506C-E15TAG2 |
3300*1150*2197 |
3950 |
|
P440PUB |
400 |
500 |
440 |
550 |
105 |
2806C-E16TAG2 |
3300*1150*2197 |
4050 |
|
P508PU |
450 |
563 |
508 |
635 |
118 |
2806C-E18TAG1 |
3500*1150*2197 |
4706 |
|
P560PU |
500 |
625 |
560 |
700 |
139 |
2806C-E18TAG2 |
3500*1150*2197 |
4706 |
|
P640PU |
580 |
725 |
640 |
800 |
150 |
4006-23TAG2A |
3900*1470*2197 |
5020 |
|
P720PU |
640 |
800 |
720 |
900 |
165 |
4006-23TAG3A |
4400*1470*2197 |
5220 |
|
P880PU |
800 |
1000 |
880 |
1100 |
199 |
4008-TAG2A |
4800*2050*2445 |
7611 |
|
P1100PU |
1000 |
1250 |
1100 |
1375 |
249 |
4012-46TWG2A |
5000*2300*2870 |
9154 |
|
P1200PU |
1090 |
1363 |
1200 |
1500 |
272 |
4012-46TWG3A |
5000*2300*2870 |
11200 |
|
P1320PU |
1200 |
1500 |
1320 |
1650 |
298 |
4012-46TAG2A |
5000*2300*2870 |
12000 |
|
P1500PU |
1360 |
1700 |
1500 |
1875 |
338 |
4012-46TAG3A |
5000*2300*2870 |
13200 |
|
Power World PERKINS Diesel Generator Set Technical Data (60HZ) |
|
Genset Type |
Frequency 60Hz Power Factor 0.8 (delay)400V 3Phase 4Wire |
Rate Fuel Consumption |
Cummins Series Engine Model (1800rpm) |
Open frame Dimension(mm) |
N. W. (kg) |
|
Prime Power |
Standby Power |
Diesel (L/h) |
Engine |
|
(KW) |
(KVA) |
(KW) |
(KVA) |
L *W*H(mm) |
|
P 26PU-60 |
24 |
30 |
26 |
33 |
4.6 |
4 04C-22TG |
1 550*730*1270 |
460 |
|
P 36PU-60 |
27 |
33 |
36 |
39 |
7.1 |
1 103C-33G2 |
1 770*730*1270 |
800 |
|
P 44PU-60 |
40 |
50 |
44 |
55 |
10.7 |
1 103C-33TG2 |
1 770*730*1270 |
800 |
|
P 47PU-60 |
43 |
54 |
47 |
59 |
10.7 |
1 103C-33TG2 |
1 770*730*1270 |
1000 |
|
P 57PU-60 |
52 |
65 |
57 |
72 |
13.9 |
1 104C-44TG2 |
2 150*730*1320 |
1000 |
|
P 60PU-60 |
55 |
68 |
60 |
75 |
13.9 |
1 104C-44TG2 |
2 150*730*1320 |
1000 |
|
P 66PU-60 |
60 |
75 |
66 |
83 |
14.8 |
1 104A-44TG1 |
2 150*730*1320 |
1000 |
|
P 81PU-60 |
74 |
92.5 |
81 |
102 |
18.7 |
1 104A-44TG2 |
2 240*730*1470 |
1080 |
|
P 88PU-60 |
80 |
100 |
88 |
110 |
19.8 |
1 104A-44TAG2 |
2 650*730*1580 |
1100 |
|
P 135PU-60 |
123 |
155 |
135 |
169 |
22.6 |
1 006TAG |
2 240*730*1500 |
1150 |
|
P 165PU-60 |
150 |
188 |
165 |
206 |
42 |
1 306-E87TAG1 |
2 953*990*1717 |
1990 |
|
P 176PU-60 |
160 |
200 |
176 |
220 |
45 |
1 306-E87TAG2 |
2 953*990*1717 |
2009 |
|
P 200PU-60 |
180 |
225 |
200 |
250 |
52 |
1 306-E87TAG3 |
2 953*1003*1717 |
2020 |
|
P 216PU-60 |
196 |
245 |
216 |
270 |
55 |
1 306-E87TAG4 |
2 953*1003*1717 |
2060 |
|
P 300PU-60 |
275 |
344 |
300 |
375 |
77 |
2 306-E14TAG1 |
3 100*1110*2065 |
3200 |
|
P 350PU-60 |
320 |
400 |
350 |
437 |
86 |
2 306C-E14TAG2 |
3 100*1110*2065 |
3300 |
|
P 400PU-60 |
350 |
438 |
400 |
500 |
94 |
2 306C-E14TAG3 |
3 100*1110*2065 |
3400 |
|
P 500PU-60A |
450 |
563 |
500 |
625 |
108 |
2 306C-E16TAG1 |
3 300*1150*2197 |
3940 |
|
P 500PU-60B |
450 |
563 |
500 |
625 |
108 |
2 506C-E15TAG1 |
3 300*1150*2197 |
3900 |
|
P 560PU-60A |
500 |
625 |
560 |
700 |
132 |
2 506C-E15TAG2 |
3 300*1150*2197 |
3950 |
|
P 560PU-60B |
500 |
625 |
560 |
700 |
134 |
2 806C-E16TAG2 |
3 300*1150*2197 |
4050 |
|
P 600PU-60 |
550 |
688 |
600 |
750 |
148 |
2 806C-E18TAG1 |
3 500*1150*2197 |
4706 |
|
P 560PU-60C |
500 |
625 |
560 |
700 |
139 |
2 806C-E18TAG2 |
3 500*1150*2197 |
4706 |
|
P 670PU-60 |
600 |
750 |
670 |
837 |
163 |
4 006-23TAG2A |
3 900*1470*2197 |
5020 |
|
P 750PU-60 |
675 |
844 |
750 |
937 |
190 |
4 006-23TAG23A |
4 400*1470*2197 |
5220 |
|
P 880PU-60 |
800 |
1000 |
880 |
1100 |
199 |
4 008-TAG2A |
4 800*2050*2445 |
7611 |
|
All above date parameter is only for reference. If any change, no notify separately. |
Power World Machinery Equipment Co., Ltd. is a manufacturer in shenzhen, China. We are specialized in manufacturing diesel generator set of which power is from 8KW/10kVA to 2000KW/2500kVA, with the best staff and the frist-rate work environment, we can supply the high-quality and competetive price products to our customers home and abroad.
We have developed a good cooperation with some world famous engine and alternator manufacturers, such as the USA Cummins, Britain Perkins, DongFeng Cummins, ChongQing Cummins, Lovol-Perkins, Deutz, Daewoo, Huachai(China), Shangchai(China). In 2000, Power World has been approved as the authorized OEM partner of Britain Perkins in China.
In 2001, Power World passed the certificate of ISO9001: 2000 international quality system. "share in cooperation, deal in honesty" is our strong working principle, Power World is looking forward to establishing business relationship with you!
