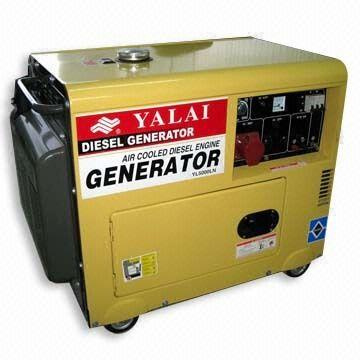

Diesel Generator Set (Silent Type)
Features:
1. Advanced YALAI Air-cooled 4-stroke Direct-injection Diesel Engine powered;
2. Advanced mini nozzle tip realizing the reliable operation, low consumption and easy start of the generator set;
3. The unique design of balancing shaft eliminating the vibration and ensuring steady operation;
4. Brushless engine design making maintenance easy;
5. The built-in muffler, balancing shaft and efficient air cleaning system greatly reducing noise.
| Model | YL3500LN | YL5000LN |
| Type | Brushless, single-phase, self-excitation, bipolar |
| Frequency (Hz) | 50 | 60 | 50 | 60 |
| Maximum Power (kw) | 3.3 | 3.3 | 4.6 | 4.6 |
| Rated Power (kw) | 2.8 | 2.8 | 4.2 | 4.2 |
| Voltage (V) | 110; 120; 220; 110/220; 120/240 |
| DC Output (V-A) | 12/8.3 |
| Power Factor | 1.0 |
| Model of Engine | YL178FG | YL186FG |
| Type | Single-cylinder, vertical, four-stroke, air-cooled diesel engine |
| Displacement (cc) | 296 | 406 |
| Engine Speed (rpm) | 3000 | 3600 | 3000 | 3600 |
| Starting Mode | Electric drive |
| Lubricating Oil Capacity (L) | 1.1 | 1.65 |
| Fuel Tank Capacity (L) | 16 |
| Working Time (hr) | 10.8 | 9.6 | 7.8 | 6.6 |
| Overall Dimension LxWxH (mm) | 835*540*740 | 915*540*740 |
| Net Weight (kg) | 140 | 170 |
| Noise Index 7 M (dBA) | 70 | 70 |
Yalai is a professional manufacturer of air-cooled diesel engines, gasoline engines, water pumps, atomizing pumps and generator sets. It enjoys convenient transportation and beautiful environment. Of more than 100 employees, senior and medium technicians take up to 60 percent. Equipped with advanced assembly lines, CNC processing center and test facilities, Yalai can realize 36, 000 units/sets annual output and has passed the quality control system certification ( SGS )and safety certification(most of our products has passed EPA & CE approva). Of course YALAI has the power of management over import and export businesses authorized by Ministry of Commerce...Thanks to reliable quality and competitive price, the products are sold to more than 70 countries and regions.
