1.3-12KW series of ordinary diesel generator sets have been provided with high quality water-cooled (condenser) diesel engine, those engine can work well in every kinds conditions.

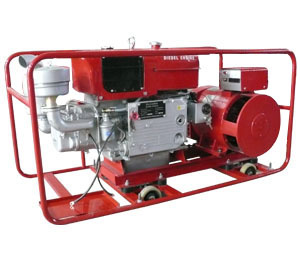

2. The structure of generator sets, the engine has been coupled with alternator though v-belt or coupled directly with alternator, both of them have been installed on the basis of anti-shock pad, the gen-sets has been fixed on the frame of steel pipes which has for wheels.
3. Other features
Easy to operate: It's easy to operate and maintain control panel capacitor type voltage regulator no-fuse circuit breaker over-current protection wheels type design double-shaft balance design electric starting.
Other Main Performance
1. Voltage stead-state regulation ± 10% fluctuation ratio 1.5% Transient-state regulation -15~20% stead time 5s
Frequency stead-state regulation ± 1% stead time 5s
2. The noise of gen-sets should be no more than 85dB(a) The fuel consumption is no more than 2.5kg/kw. H.
| DIESEL ENGINE | SETS MODEL | GF1-2KW | GF1-3KW | GF1-5KW | GF1-8KW | GF1-10KW | GF1-12KW |
| MODEL | S175 | S175 | S195 | S1100 | S1105 | S1110 |
| STARTING SYSTEM | MANUAL/ELECTRIC START |
| FUEL COMSUMPTION(g/kw.h) | 270 | 270 | 250 | 250 | 250 | 250 |
| TYPE | HORIZONTAL,SINGLE-CYLINDER,FOUR-STROKE,WATER-COOLED |
| COOLING TYPE | CLOSED CIRCULATING COOLING(CONDENSOR) |
| RATED SPEED | 1500/1800 |
ALTER-
NATOR | MODEL | STC-2(ST-2) | STC-3(ST-3) | STC-5(ST-5) | STC-8(ST-8) | STC-10(ST-10) | STC-12(ST-12) |
| RATED FREQ.(Hz) | 50/60 |
| RATED VOLTAGE(V) | 400/230 |
| RATED CURRENT(A) | 3.8(13/25) | 5.4(13/25) | 9(21.7/43.5) | 14.4(32.6/65.2) | 18(43.5/87) | 21.6(52.2/104.3) |
| RATED OUTPUT(KW) | 2 | 3 | 5 | 8 | 10 | 12 |
| POWER FACTOR | 0.8LAG(1.0) |
| TYPE | TRIPLE HARMONIC,3PHASE(SINGLE-PHASE) |
| GEN-SETS | DIMENSIONS(mm) | 1050X500X720 | 1320X650X860 | 1320X650X860 | 1320X650X860 | 1320X650X860 |
| NET WEIGHT(kg) | 160 | 170 | 320 | 350 | 360 | 380 |
Mindong Baiyun Electrical Machine Co., Ltd., is an export base enterprise of electric and mechanical products approved by National Economic and Trade Committee. It is one of 15 top electic motor and appliance enterprises in Mindong and a major taxpaying company in Fuan. It specializes in the production and export of series of electric generators, diesel oil power supply units and series of water pumps. Since its estalishment, sticking to the guideline of 'Seek development by science and technology, seek survival by quality, seek profit by management', the company has been developing rapidly by paying greet attention to product development and quality management. 100% of its products are exported to Southeast, Asia, Middle East, South America, Europe, The United States and othercounties and regions. Its electric motor for pumps passsed the national security certification of electric produxts in 1996. ST ans STC series of electric generators have passed departments and have been granted quality license of export participated in the Egypt International Fair and were granted the Pyramid Prize.
To strengthen the management and raise the corporate scale, the Company pays great attention to recruiting and introduction oftechnical talents. Introducing technical cadre-mem for within and ourside the province, the companu now has 4senior engineers, 8 engineers and 16 technical persons, which constitutes the Technical Development Department and enables the company to increasethe scientific and technolohical contecnts of its products and make contribution to the development of new products. There are workshops of generator, water pump and metalworking. 8 new production lines have examing equipment have been introduced to strengthen quality inspection and standardize production and management, move of working procedure and product export.
We are ready to meet coming guests from all sides with brand new looks, superior quality and service.
