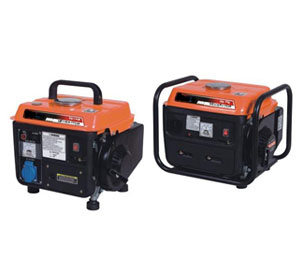

One cylinder, 2-strokr, air cooled gasoline engine, with recoiling start.
*Compact and portable power for emergency and home standby use.
*Large mufflers and less fuel consuption.
Overload protection for safe running.
*Color box package for choice.
Characteristics:
With Japanese, European, Universal Socket or Voltmeter or DC output as you request.
Advantage:
1. Economical, low fuel consumption.
2. Compact in structure, Low in noise pollution and high in efficiency.
3. Stable voltage and frequency
4. Brushless alternator and non-contact electronic ignition system adopted for easy maintenance
5. Exceptional performance at reasonable price
MODEL
| RD650
| RD950
|
Generator
|
Rated frequency(hz)
| 50 /60
| 50/60
|
Rated output(kw)
| 0.45/0.55
| 0.65/0.75
|
Max.output(kw)
| 0.50/0.60
| 0.70/0.80
|
Rated voltage(v)
| 110,120,220,230,240,110/220,115/230,120/240
|
Power factor(cos$)
| 1
|
Adjusting voltage
| Capacitance expiate
|
Engine
|
Model
| 1E45F
|
Engine type
| Single cylinder,2-stroke,air cooled
|
Bore*Stroke(mm)
| 45*40
|
Rated output(kw)
| 1.1/3000rpm
|
Ignition system
| Non-contact transistorized ignition
|
Starting system
| Manual
|
Fuel capacity(l)
| 4
|
Continuous running time(h)
| 7.5
| 6
|
Fuel trademark
| 90#petrol,FC lube for 2 stroke engine
|
Dimension
|
Length*Width*Height(mm)
| 375*315*320
| 375*315*320
|
N.W/G.W(KG)
| 18.5/20.5
| 20.5/22.5
|
Mindong Baiyun Electrical Machine Co., Ltd., is an export base enterprise of electric and mechanical products approved by National Economic and Trade Committee. It is one of 15 top electic motor and appliance enterprises in Mindong and a major taxpaying company in Fuan. It specializes in the production and export of series of electric generators, diesel oil power supply units and series of water pumps. Since its estalishment, sticking to the guideline of 'Seek development by science and technology, seek survival by quality, seek profit by management', the company has been developing rapidly by paying greet attention to product development and quality management. 100% of its products are exported to Southeast, Asia, Middle East, South America, Europe, The United States and othercounties and regions. Its electric motor for pumps passsed the national security certification of electric produxts in 1996. ST ans STC series of electric generators have passed departments and have been granted quality license of export participated in the Egypt International Fair and were granted the Pyramid Prize.
To strengthen the management and raise the corporate scale, the Company pays great attention to recruiting and introduction oftechnical talents. Introducing technical cadre-mem for within and ourside the province, the companu now has 4senior engineers, 8 engineers and 16 technical persons, which constitutes the Technical Development Department and enables the company to increasethe scientific and technolohical contecnts of its products and make contribution to the development of new products. There are workshops of generator, water pump and metalworking. 8 new production lines have examing equipment have been introduced to strengthen quality inspection and standardize production and management, move of working procedure and product export.
We are ready to meet coming guests from all sides with brand new looks, superior quality and service.
