1. We are the manufacture in China
2. Offer CE certificate
3. Offer ISO certificate
4. We are the OEM factory of Cummins Engine Company

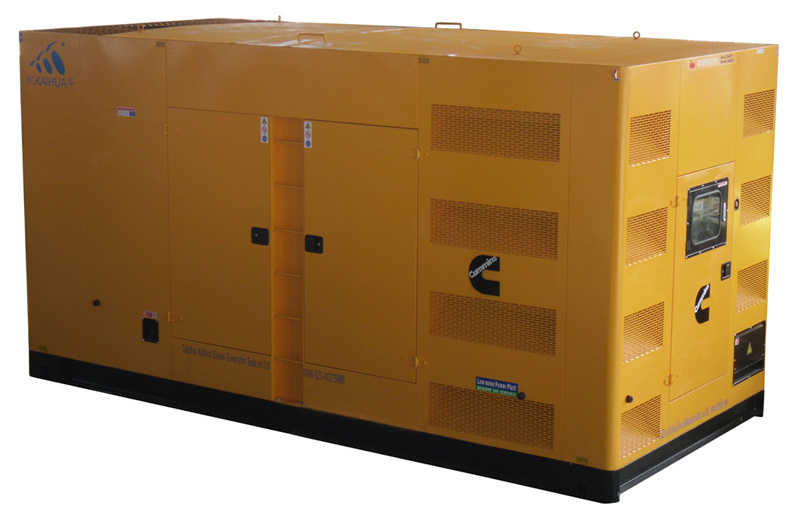

5. All types of open, silent, waterproof, mobile...
6. Silent type work as 68dB in 7 meters.
|
Technical data |
|
Genset Model |
KH-400GF |
|
Prime Power |
400KW/500KVA |
|
Standby power: |
440KW/550KVA |
|
Voltage: |
400V |
|
Frequency |
50Hz |
|
The factor of rated power: |
COS=0.8(lagging) |
|
The regulating rate of steady voltage: |
≤ 1% |
|
The time of steady voltage: |
≤ 1.5sec |
|
The waving rate of voltage: |
≤ 1.0% |
|
The regulating rate of steady frequency: |
≤ 3% |
|
The regulating rate of instantaneous frequency: |
≤ ± 10% |
|
The time of steady frequency: |
3sec |
|
The waving rate of frequency: |
≤ 1% |
|
Dimension (L× W× H) (mm): |
4350× 2150× 2300 |
|
Net weight(kg) |
4200 |
|
Gross weight (kg) |
4300 |
|
Diesel Engine |
|
Brand |
Cummins |
|
Model |
KTA19-G4 |
|
Rated Power: |
448KW |
|
Standby power: |
504KW |
|
Number of Cylinders |
6 cylinders in line |
|
Rotating Speed |
1500RPM |
|
Cycle |
Four stroke |
|
Bore× Stroke(mm) |
159× 159 |
|
Compression Ratio: |
13.9: 1 |
|
Displacement(L) |
18.9 |
|
Speed Governor |
Electrical |
|
Cooling System |
Water-cooled |
|
Fuel Consumption at Prime power rating: |
203g/kwh |
|
Starting Method |
Electrical starting |
|
Alternator |
|
Brand |
Stamford |
|
Model |
HCI544C |
|
Rated power |
400KW/500KVA |
|
Type: |
Brushless, Self-excite, AVR automatic voltage regulating |
|
Number of Phase |
3 |
|
Connecting Type |
3 Phase and 4 Wires |
|
The components of the genset |
|
(1) Diesel Engine; (2)Alternator; (3) ATS Control Panel; |
|
Control Panel |
Kaihua ATS can automatically transfer load between the main power and the emergency power(generator set) without operator. When the main power fails or voltage drop below 80% of normal voltage, the ATS will start emergency generator set after a preset time 0-10 seconds (adjustable), and transfer the load to emergency power(generator set). Contrarily, when the main power recover normal, the ATS will transfer the load from the emergency power(generator set) to the main power, and then stop the emergency power(generator set).
|
Our company is maunfacturer of diesel generator, the OEM of cummins engines with certify of CE, ISO9001.
Mainly produce and sale diesel gen-sets, inland diesel gen-sets from 3-3000kVA, marine energent diesel gen-sets from 12-500kw and kinds of imported diesel gen-sets, movable power station, low-noise, multi-PCS connection, remote monitoring, gen-sets with ATS, gas gen-sets etc.
With good quality and low price.
