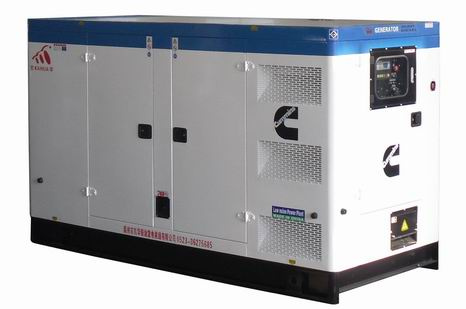

50kVA CUMMINS Silent Type Diesel Generator
1. Famous engine of Cummins
2. CE certificate, ISO9001-2008 certificate
3. High reliability, durability, stability
4. International warranty service
|
1. Specification of genset |
|
Gensets model |
KH-40GF |
|
Prime power(KVA) |
50 |
|
Rated Voltage(V) |
380/220 |
|
Rated frequency(HZ) |
50 |
|
Rated Speed (rpm) |
1500 |
|
Power Factor(COS) |
0.8(lagging) |
|
Dimensions(mm) (L×W×H) |
1800x720x1200 |
|
Net Weight(kg) |
920 |
|
2. Specification of diesel engine |
|
Engine brand |
Cummins |
|
Engine model |
4BTA3.9-G2 |
|
Number of Cylinders |
4 |
|
Cylinder arrangement |
Vertical in-line |
|
Cycle |
Four stroke |
|
Aspiration |
Turbo charged and Water/Air cooling |
|
Fuel System |
AD type fuel pump, EFC |
|
Bore×Stroke (mm×mm) |
102x120 |
|
Displacement (Liter) |
50.3 |
|
Compression Ratio |
16.5:1 |
|
Speed Governor |
Electronic |
|
Cooling System |
Forced Water Cooling Cycle |
|
Total lubrication system capacity (L) |
16.4 |
|
Fuel Consumption at 100% Load (g/kwh) |
216 |
|
Starting Method |
DC24V electrical starting |
|
3. Specification of alternator |
|
Alternator brand |
STAMFORD |
|
Orgin |
WuXi |
|
Alternator model |
UCI224D |
|
Number of Phase |
3 |
|
Connecting Type |
3 Phase and 4 Wires |
|
Number of Bearing |
1 |
|
Protection Grade |
IP21 |
|
Altitude |
≤1000m |
|
Exciter Type |
Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
|
Insulation Class |
H |
|
Telephone Influence Factor (TIF) |
≤50 |
|
THF |
≤2% |
|
Voltage Regulation, Steady State |
≤±1% |
|
Transient State Voltage |
≤-15%+20% |
|
4. Specification of control Panel(with (with GU620A controller) |
|
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function. |
Our company is maunfacturer of diesel generator, the OEM of cummins engines with certify of CE, ISO9001.
Mainly produce and sale diesel gen-sets, inland diesel gen-sets from 3-3000kVA, marine energent diesel gen-sets from 12-500kw and kinds of imported diesel gen-sets, movable power station, low-noise, multi-PCS connection, remote monitoring, gen-sets with ATS, gas gen-sets etc.
With good quality and low price.
