Rated frequency(Hz) 50 60
Rated voltage(V) 232
Rated current(A) 7.4 8.7/17.4
Rated output power(kW) 1.7 2.0
Rated rotation speed(rpm) 3000 3600
DC output 12V 8.3A
Power factor(cos) 1
Phase number Single phase
Noise level[dB(A)@7m] 72~77
Overall dimension(L*W*H)[mm(in)] 575x400x530 (22.64x15.75x20.87)
Dry weight[kg(ibs. )] 60(132)
Structure type Open-frame type
Coupling mode Transmission shaft rigid coupling

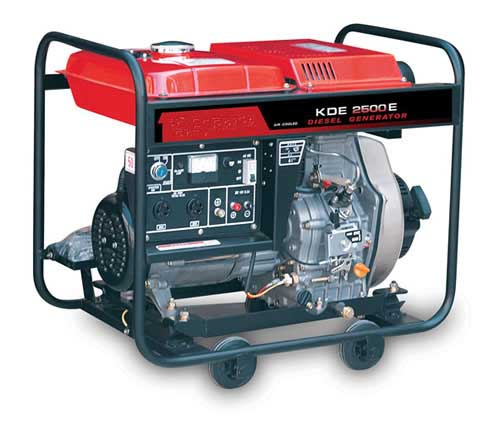

Engine model KM170FE
Engine type Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine
Displacement[ml(cu. In)] 211(12.88)
Compression ratio 20: 01
Rated power[kW(Hp)/rpm] 2.5(3.4)/3000, 2.8(3.8)/3600
Starting system electric starter
Rotation direction(View from flywheel) Clockwise
Fuel 0# (summer), 10# (winter) light diesel oil
Lube SAE10W30above CC grade
Low oil pressure alert system With
Excitation mode Self-excitation and constant voltage(AVR)
Fuel capacity[L(gal. )] 12.5(2.75)
Ningbo Yinzhou Xingchen Machine Factory was established in1995, which is located in Ningbo with advantages in geography position. Our factor is professionally engaged in the products of constuction machinery, such as Concrete Vibrator, plate compactor, power trowel, concrete cutters, water pumps. Hand insertion vibrators, rammers, concrete mixer and so on. The products have ready market at lowest price and with good service all over the world.
Lowest Price anywhere we are so sure thet you can't find better concrete vibrator for lower prices. We offer to beat any conpetitor's delivered price within one year from the date of purchase-even if it's an advertised special.
100% Satisfaction Guarantee products featured by harbor freight have passed rigorous inspection by our quality assurance team. Our 100% satisfaction guarantee is our solid commitment to you that if for any reason you are not satisfied with any item, simply return it for a fast, courteous, hassle-free refund.
If the product we offered above is somehow different from what you required actually, please kindly inform us in detail. We will be pleased to re-offer you as your actual requirements.
