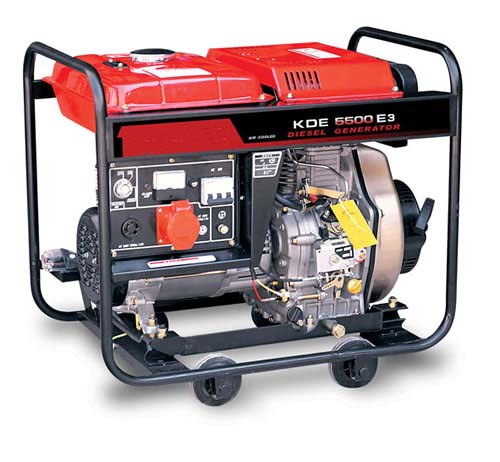

Diesel Generator (KDE5500E3)
MODEL | KDE5500E3 |
Rated frequency(Hz) | 50 60 |
Rated voltage(V) | 400/230 400/230 |
Rated current(A) | 6.1 7.2 |
Rated output power(kW) | 4.2 5.0 |
Rated rotation speed(rpm) | 3000 3600 |
DC output | No |
Power factor(cos) | 0.8(Applied to KVA) |
Phase number | Three phase |
Noise level[dB(A)@7m] | 72~77 |
Overall dimension(L*W*H)[mm(in)] | 720x492x650(28.35x19.37x25.59) |
Dry weight[kg(ibs.)] | 100(220) |
Structure type | Open-frame type |
Coupling mode | Transmission shaft rigid coupling |
Engine model | KM186F/FE |
Engine type | Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine |
Displacement[ml(cu.in)] | 406(24.78) |
Compression ratio | 19:01 |
Rated power[kW(Hp)/rpm] | 5.7(7.75)/3000,6.3(8.57)/3600 |
Starting system | X:Recoil starter E:electric starter |
Fuel | 0# (summer),-10# (winter) light diesel oil |
Lube | SAE10W30(above CC grade) |
Low oil pressure alert system | With |
Excitation mode | Self-excitation and constant voltage(AVR) |
