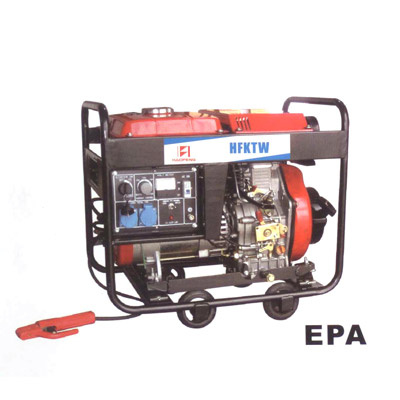

Model: HFKTW
Model: 186F
Tape: Forced air-cooled 4 -stroke OHV single cylinder
Cylinder diameter*stroke(mm)D*S: 86*70
Stopcock discharge(L): 0.406
Rated rotation speed(r/min): 3000 / 3600
Rated power(Kw/ps): 5.7/7.75 / 6.3/8.56
Fuel consumption(g/kw/h) <=4.08
Crank cumgyrate direction deasil: Viewed from flywheel
Cooling mode: Forced air-cooled
Lubricate mode: Pressure splash
Start system: Recoil and hand - operated, electric-operated
Frequency(Hz): 60
Watt(kw): 22
Rated moltage(AC)(V): 240
Rated(AC)(A): 11
Phase: : Single
Power factor(Cos): 1.0
DCoutput(DC)(V): 14.5/24
Empty load electric welding voltage (DC)(V): 65
Rated welding electric(DC)(A): 180
Electric welding work voltage(DC)(V): 25~30
Electric welding load persist rate: 50%
Electric welding adjustment scope(A): 25~30
Rated rotational speed(r/min): 3000
The way of excitation: Can control other
Work way: Persist run with 12hour
The way of joins: Transmission shaft iron connecting
Dimension L*W*H(mm): 750*490*655
N. W. /G. W. (kg): 120/123
20GP/40GP: 99/207
Branch manfachurer: Taizhou Haofeng Industrial &Commercial Co., Ltd.
A manufacturer specializing gasoline generator, diesel generator, gasoline water pump, gasoline chain saw, gasoline cut-off saw, gasoline brush cutter, gasoline hedge timmer.
With ISO9000, CE, EPA, ROSH.
