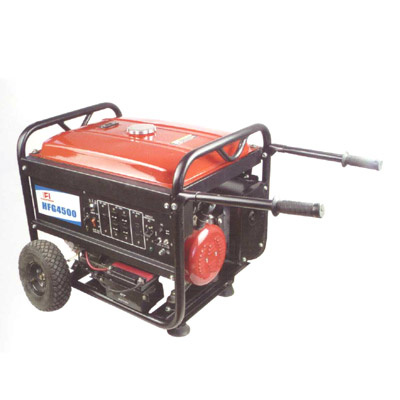

Model: HFD4500
Model: 186F
Tape: Forced air-cooled 4 -stroke OHV single cylinder
Cylinder diameter*stroke(mm)D*S: 86*70
Stopcock discharge(L): 0. 406
Rated rotation speed(r/min): 3000/3600
Rated power(Kw/ps); 5. 7/7. 75 6. 3/8. 56
Fuel consumption(g/kw/h): ≤4. 08
Crank cumgyrate direction deasil; Viewed from flywheel
Cooling mode: Forced air-cooled
Lubricate mode: Pressure splash
Start system: Recoil and hand-operated, electric-operated
Phase number: Single phase/three phase
Rated freqyebct(Hz): 50/60 50/60
Rated Voltage(V): 220/110 380/220
Power factor: 1. 0 1. 0
Rated output(KW): 4. 0 4. 0
Maximum AC output(KW): 4. 2 4. 2
Dc output in low voltage: 12V, 8. 3A
Dimension L*w*H(mm): 750*490*655
N. W. /G. W. (Kg): 100/103
20Gp/40Gp: 99/207
Branch manfachurer: Taizhou Haofeng Industrial &Commercial Co., Ltd.
A manufacturer specializing gasoline generator, diesel generator, gasoline water pump, gasoline chain saw, gasoline cut-off saw, gasoline brush cutter, gasoline hedge timmer.
With ISO9000, CE, EPA, ROSH.
