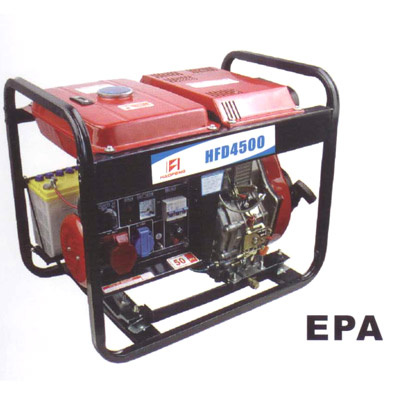

Model: HFD4500
Model: 186F
Tape: Forced air-cooled 4 -stroke OHV single cylinder
Cylinder diameter*stroke(mm)D*S: 86*70
Stopcock discharge(L): 0.406
Rated rotation speed(r/min): 3000 / 3600
Rated power(Kw/ps): 5.7/7.75 / 6.3/8.56
Fuel consumption(g/kw/h) <=4.08
Crank cumgyrate direction deasil: Viewed from flywheel
Cooling mode: Forced air-cooled
Lubricate mode: Pressure splash
Start system: Recoil and hand - operated, electric-operated
Phase number: Single phase/three phase
Rated freqyebct(Hz): 50/60 / 50/60
Rated Voltage(V): 220/110 / 380/220
Power factor: 1.0 / 1.0
Rated output(KW): 4.0 / 4.0
Maximum AC output(KW): 4.2 / 4.2
Dc output in low voltage: 12V, 8.3A
Dimension L*w*H(mm): 750*490*655
N. W. /G. W. (Kg): 100/103
20Gp/40Gp: 99/207
Branch manfachurer: Taizhou Haofeng Industrial &Commercial Co., Ltd.
A manufacturer specializing gasoline generator, diesel generator, gasoline water pump, gasoline chain saw, gasoline cut-off saw, gasoline brush cutter, gasoline hedge timmer.
With ISO9000, CE, EPA, ROSH.
