Alert
As the generator operating,the system will alert and close the generator if the parameter exceed the max.which set by the user.
All kinds of alert are as below:
.The flood currency protection
.The low voltage protection
.The high voltage protection
.The low frequency protection
.The low voltage protection of the battery
.The high voltage protection of the battery
.The machinery temp .protection
.The low oil protection
.The protection of starting unsuccessfully(it can’t be canceled)
.The protection of stopping unsuccessfully(it can’t be canceled)
.You can stop alerting and come into the main screen by pressing the menu key after alert.The user must obviate the trouble according to the trouble hint information or broaden the protection range,then he can come into next operation.

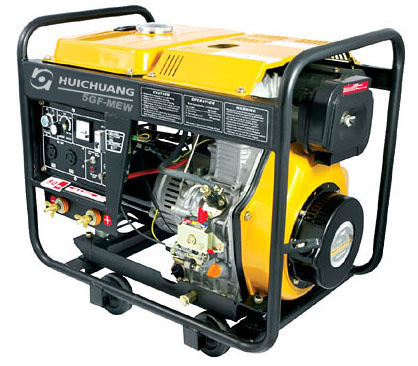

| DIESL GENERATIOR/WELDER | |
| Model | 5GF-MEW |
| Welder | Rated Output(kw) | 3.64 |
| Rated Current(A) | 190 |
| Rated Voltage(V) | 26 |
| Applicable Electrode(mm) | φ2.6-3.2 |
| Ac generator | Rated Output(kw) | 2 |
| Rated Frequency(Hz) | 50/60 |
| Rated Voltage(V) | 230 |
| Engine(diesel) | Model | HC186F |
| Type | Single-cylinder,vertical 4-stroke,Air-cooled |
| Set | Dimension LxWxH(mm) | 760x500x650 |
| N.W.(kg) | 108 |
