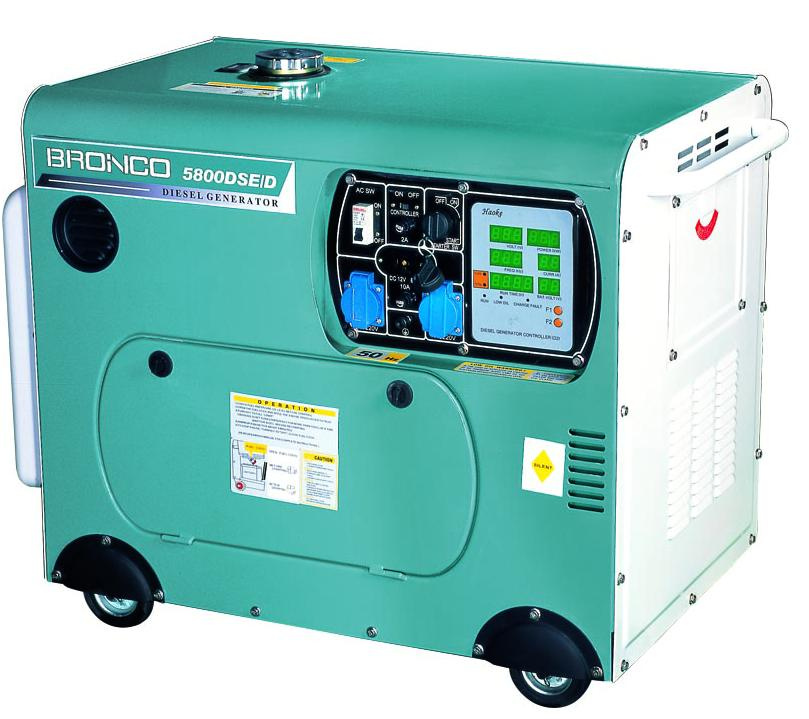

BN5800DSE/D Diesel Generator
The start power of generator sets is a quality diesel engine, insuring fuel burning effectively and economically.
Adopting several reliable measures for shock protection, with a small shock of the whole sets.
With a whole closed structure set, adopting light materials, small cubage and light weight.
| SILENT DIESEL GENERATOR | BN5800DSE/C | BN5800DSE/D |
| Engine model | BN186F/E | BN186FA/E | BN186F/E | BN186FA/E |
| Rated frequency (HZ) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated voltage (V) | 230 | 240/120 | 400/230 | 420/240 | 230 | 240/120 | 400/230 | 420/240 |
| Rated current (A) | 23.5 | 20.8/41.7 | 9.2 | 8.3 | 19.5 | 20.8/41.7 | 9.2 | 8.3 |
| Rated output power (KW) | 5.5 | 6 | 5.5 | 6.0 | 4.5 | 5 | 5.5 | 6.0 |
| Max.output power (KW) | 6.3 | 7.6 | 6.3 | 7.6 | 5.0 | 5.5 | 6.3 | 7.6 |
| Rated rotation speed (RPM) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
| Power factor (cosØ) | 1 |
| Bore×Stroke(mm) | 86×70 | 86×72 | 86×70 | 86×72 |
| Compression ratio | 19:01 |
| Starting system | Recoil starter/E-starter |
| Rotation direction | clockwise |
| Lubrication system | pressure splashed |
| Displacement | 406CC | 418CC | 406CC | 418CC |
| Fuel consumption(g/kw.h) | <273/286 |
| Fuel type | (summer)0#,(winter)10# |
| Lube oil type | SAE-10W30(above CC grade) |
| Structure type | silent |
| Starting system | Electric starter |
| Fuel tank capacity(L) | 16 |
| Oil capacity(L) | 1.65 |
| Noise level (DB) | 75 |
| Overall dimension (MM) | 960×570×760 | 960×570×760 | 960×570×760 | 960×570×760 |
| Net weight (KG) | 165 | 165 | 165 | 165 |
