Bronco specializes in designing and manufacturing medium-small-size diesel generators, diesel engines, gasoline generators, gasoline engines, all kinds of motors, gasoline and diesel power pumps and woodworking machinery---mortise machines; Not only company has more than 50 technicians and engineers with high degree, a professional training managing backbone team with modern controlling system, but also has software system in products exploitation and design. And we will always insist on the ISO9001: 2000 managing in all-directions.
Bronco relies on scientific research and marketing guide, fething in advanced technology, materials and productive techniques, developing new products ceaselessly. And parts of our products have reached the leader level in China. Many of our products have exported to Europe, America, Middle East, East-south in Asia, all the client care for our products and give them a high praise.
Bronco has a spirit of "Reclamation, Firm G Strong". Eximious innovative consciousness, excellent quality products and loyal service is our remorseless tenet and stately promises.
|
SUPER SILENT DIESEL GENERATOR |

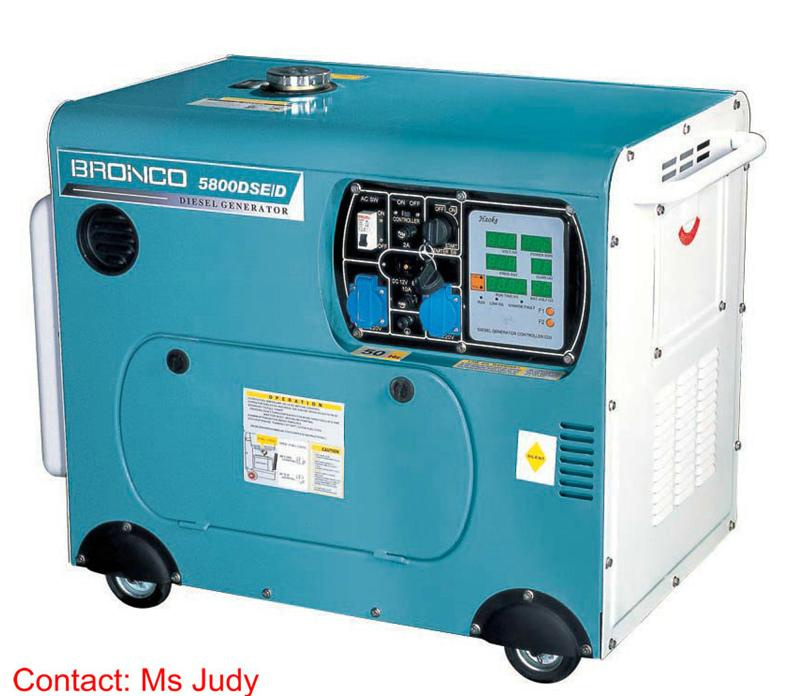

BN5800DSE/D(super silence ) |
|
Engine model |
BN186F/E |
|
Rated frequency (HZ) |
50 |
50 |
|
Rated voltage (V) |
230 |
400/230 |
|
Rated current (A) |
19.5 |
9.2 |
|
Rated output power (KW) |
4.5 |
5.5 |
|
Max.output power (KW) |
5.0 |
6.3 |
|
Rated rotation speed (RPM) |
3000 |
3000 |
|
Power factor (cosØ) |
1 |
|
Bore×Stroke(mm) |
86×70 |
|
Compression ratio |
19:01 |
|
Starting system |
Recoil starter/E-starter |
|
Rotation direction |
clockwise |
|
Lubrication system |
pressure splashed |
|
Displacement |
406CC |
|
Fuel consumption(g/kw.h) |
<273/286 |
|
Fuel type |
(summer)0#,(winter)10# |
|
Lube oil type |
SAE-10W30(above CC grade) |
|
Structure type |
silent |
|
Starting system |
Electric starter |
|
Fuel tank capacity(L) |
16 |
|
Oil capacity(L) |
1.65 |
|
Noise level (DB) |
75 |
|
Overall dimension (MM) |
820×570×760 |
|
Net weight (KG) |
165 |
Bronco (Zhejiang) Electric Machinery Manufacturing Co., Ltd. is located in the beautiful Taizhou Economic Development Zone, where occupies an area of 40, 000 square meters.
BRONCO is a company that combines the development, manufacturing, and marketing of gasoline generators, diesel generators, water pumps, air compressors.
We possess advanced production testing equipment and a modern quality management system, and have always implemented comprehensive quality control through strict adherence to ISO9001 standards. Furthermore, our products have also passed GE, CE, EMC certification.
The company has adopted horizontal integration, and product development is both supported by scientific research institutions and LED by the demands of the market. We actively incorporate advanced technology, materials and production processes so as to constantly develop new products - some of which already meet the highest standards within China.
Our products are sold throughout the world in regions such as Europe, America, the Middle East, Southeast Asia, and Africa, where we have built up a complete sales network. In Dubai, the economic heart of the Middle East, we have created a sales branch, and have won the trust and support of customers through our outstanding products and consummate service.
