High quality with good price.

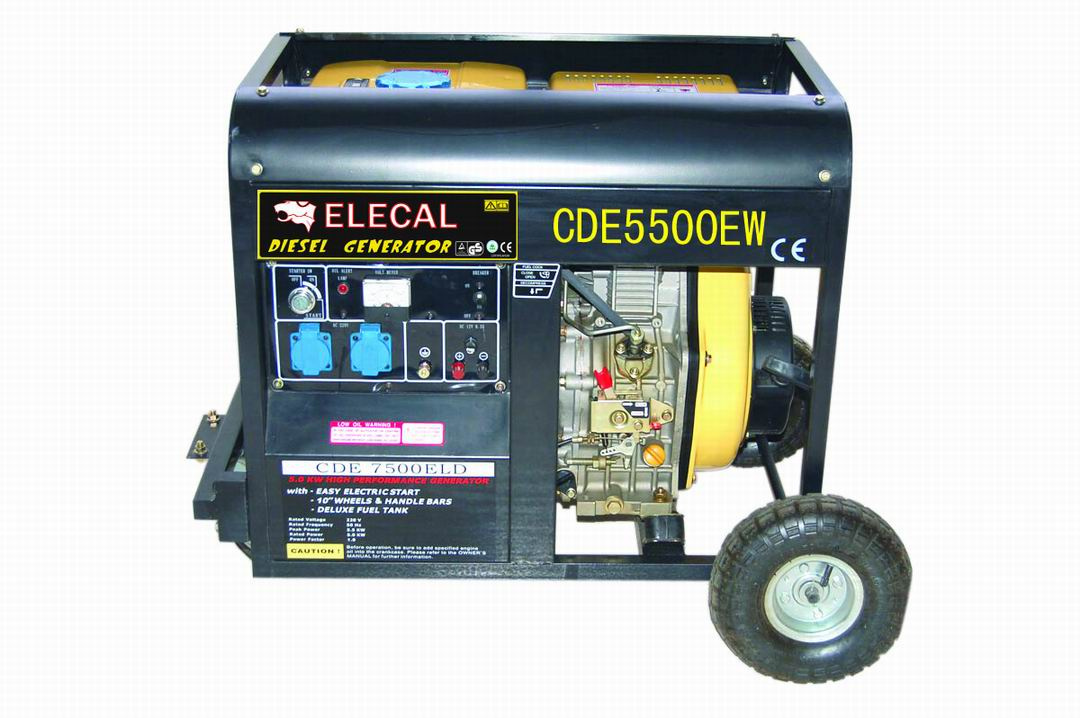

| Model | CDE5500EW |
| Rated frequency (Hz) | 50 60 |
| Rated power(kW) | 4.5 5 |
| Rated voltage (V) | |
| Rated current (A) | |
| No.of phase | Single |
| Power factor (cos φ ) | 1 |
| Weldling voltage at zero load (DC)(V) | 65-70 |
| Rated weldling current DC(A) | 160 |
| weldling voltage(DC)(V) | 25-30 |
| Weldling load continous ratio | 60% |
| Weldlig current adjustment range(A) | 50-180 |
| Electrode φ (mm) | 1.6-4.0 |
| Rated speed (r/min) | 3000 3600 |
| Excitation mode | Self-excitation and constant voltage (AVR) |
| Recifying mode | IGBT+nine-phase rectifying bridge (PWM) |
| Insulation grade | F |
| Pole number | 2 |
| Engine model | CH186FAG |
| Engine type | Single cylinder, direct injection, four-stroke, air-cooled |
| Displacement (ml) | 418 |
| Bore x stroke (mm) | 86×72 |
| Compression ratio | 19.1:1 |
| Rated power kW/(r/min) | 6 /3000 6.6/3600 |
| Fuel type | 0#(summer),--10#(winter),--35#(chill cold)light diesel |
| Lube oil brand | L-CED Grade 15W30 or 15W40 |
| fuel consumption (g/kW.h) | 275.1 281.5 |
| Fuel tank capacity (L) | 12 |
| Continous running time (hr) | 7 |
| Overall dimension (mm)(L×W×H) | 715*495*620 |
| Dry weight (kg) | XW:130 EW:147 |
| Starting system | XW: Recoil starter EW: Electric starter |
Fuzhou Changhua Power Machinery Co., Ltd. Is engaged in research, development, manufacture and selling in various kinds of alternator, engine, generator, water pump. The company with 8, 000 m2 workshop and employs more than 200 staff workers, among which 30 are engineers or technicians. It operates an advanced production line with whole set of inspection and testing equipment and a
Yearly capacity of 200, 000 sets of machines. The company put through EPA, CE, SONCAP and ISO9001, Certificate.
"Reputation is the first, Consumers are supreme"is our persistent working tenet. We have and will serve the consumers with high quality, reasonable price, perfect service and flexible working way.
