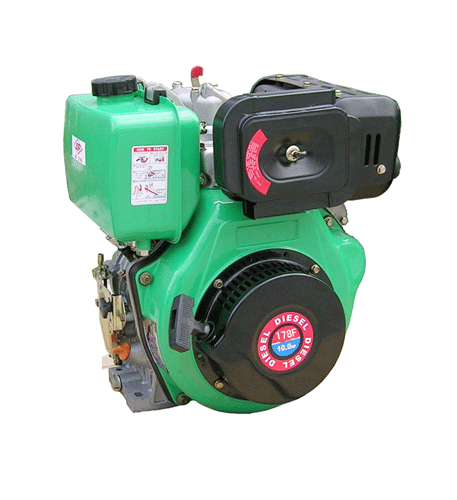

Diesel Engine JDP170F(E)/178F(E)/186F(E) SERIES
| Model | JDP170F(E) | JDP178F(E) | JDP186FA(E) |
| Type | Vertical,Single cylinder,4-stroke,air-cooled |
| Combustion systerm | direct injection |
| Bore×stroke[mm(in)] | 70×55(2.76×2.11) | 78×62(3.07×2.44) | 86×72(3.39×2.83) |
| Displacement[L(cc)] | 0.211(211) | 0.296(296) | 0.418(418) |
| Compression ratio | 20:1 | 20:1 | 19:1 |
| Rated power[hp/rpm] | 3.4/3000rpm | 5.0/3000rpm | 7.7/3000rpm |
| 3.8/3600rpm | 5.5/3600rpm | 9.0/3600rpm |
| Max.output[Hp/rpm] | 3.8/3000rpm | 5.4/3000rpm | 8.8/3000rpm |
| 4.2/3600rpm | 6.0/3600rpm | 10.0/3600rpm |
| Rated speed(rpm) | 3000/3600 |
| Starting systerm | Recoil and hand-operated/E: Electric start |
| Fuel tank capacity [L(US.gal)] | 2.5(0.66) | 3.5(0.92) | 5.5(1.45) |
|
| Lube capacity [L(US.gal)] | 0.75(0.20) | 1.1(0.29) | 1.65(0.44) |
|
| Fuel consumption [g(ml)/kWh] | 3000rpm:280(383) | 3000rpm:276(378) | 3000rpm:272(372) |
| 3600rpm:288(394) | 3600rpm:285(391) | 3600rpm:281(385) |
| Fuel | 0#(summer),-10#(winter) diesel oil |
| Lube | SAE10W30(above cc grade) |
| Overall dimension(L×W×H)[mm(in)] | 335×380×415 (13.19x14.96x16.34) | 400×420×450 (15.75x16.54x17.72) | 420×440×495 (16.53x17.32x19.49) |
| Net weight[kg(lbs)] | Recoil starter type:27(59.4) | Recoil starter type:33(72.6) | Recoil starter type:48(105.6) |
| Electric starter type:31(68.2) | Electric starter type:38(83.6) | Electric starter type:53(116.6) |
| Rotation direction (view from the wheel) | Clockwise |
|
G&E Equipment Manufacturing Co., Ltd (GEEM) is specialized in manufacturing and merchandising professional generators, engines, agricultural machinery, garden machinery, etc.
With the manufacturing base in Suzhou which is only one and half hour's drive from Shanghai office, GEEM has become a leading member of its trade. Our key product range includs generator sets, agricultural machinery, high pressure cleaners, engineering machinery, garden machinery and related engines. Among our wide range of generator sets, the sound proof type rated from 8KVA to 300KVA has become the bestsellers and they are widely respected as one of the most successful and reliable backup power in both commercial and cosumer areas. As we have a strict quality control system in factory, our product quality is well guaranteed. And all of our product ranges have gained necessary certificates for our target market such as EPA for USA, CE for Europe. Thanks to our mass production ability, we are able to cut our costs to the utter limit, which makes our products competitive in term of prices. Now our products are sold world wide with key markets such as North America, South America, and Europe. Investing in our own R&D department with experienced engineers, we have the capacity to be an OEM base with your technical requirements
