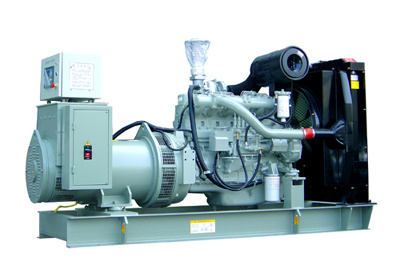

DEUTZ SERIES GENERATOR(JDP-DE35/138)
| Genset Model | JDP-DE35 | JDP-DE50 | JDP-DE68 | JDP-DE100 | JDP-DE138 |
| 50Hz Power factor:0.8 400/230V Three Phase and four wire | Standby Power | KVA | 34 | 50 | 68 | 99 | 138 |
| KW | 28 | 40 | 55 | 80 | 110 |
| Rated Power | KVA | 31 | 45 | 62 | 90 | 125 |
| KW | 25 | 36 | 50 | 72 | 100 |
| A | 45.1 | 65 | 90.2 | 129.9 | 180.4 |
| Fuel consumption | Diesel | g/kw.H | 220 | 220 | 210 | 196 | 196 |
| Lub-oil | g/kw.H | 1.65 | 1.65 | 1.575 | 1.47 | 1.47 |
| Engine Model | D226B-3 | TD226-3 | TD226B-4 | TD226B-6 | TDB226B-6 |
| The No. of Cylinder | 3L | 3L | 4L | 6L | 6L |
| DEUTZ diesel engine (1500rpm) | Bore | mm | 105 | 105 | 105 | 105 | 105 |
| Stroke | mm | 120 | 120 | 120 | 120 | 120 |
| Displacement | L | 3.12 | 3.12 | 4.16 | 6.24 | 6.24 |
| Exhaust Air Flow | m 3 /min | 155 | 160 | 168 | 187 | 187 |
| Compress Air Flow | m 3 /min | 2.83 | 3.58 | 4.67 | 6.83 | 8.67 |
| Exhaust Gas Flow | m 3 /min | 6 | 7.67 | 9.67 | 16.17 | 20 |
| Exhaust Gas Highest Temperature | .C | 470 | 470 | 530 | 530 | 530 |
| Lub-oil Pan Capacity | L | 7.75 | 7.75 | 9.75 | 14 | 14 |
| Cooling Water Capacity | L | 17 | 17 | 25 | 30 | 30 |
| Voltage for Start (DC) | V | 24 | 24 | 24 | 24 | 24 |
| MAX. Output | KW | 33 | 49 | 66 | 99 | 132 |
| Instrument for Adjusting Speed | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical |
| Dimensions and Weight of Genset | (L) Open/Silencer | mm | 1650/2300 | 1650/2300 | 1890/2850 | 2700/3100 | 2700/3100 |
| (W) Open/Silencer | mm | 650/1080 | 650/1080 | 650/1080 | 900/1080 | 900/1080 |
| (H) Open/Silencer | mm | 1400/1510 | 1400/1510 | 1400/1510 | 1490/1510 | 1490/1510 |
| Weight | kg | 710 | 760 | 860 | 1230 | 1290 |
