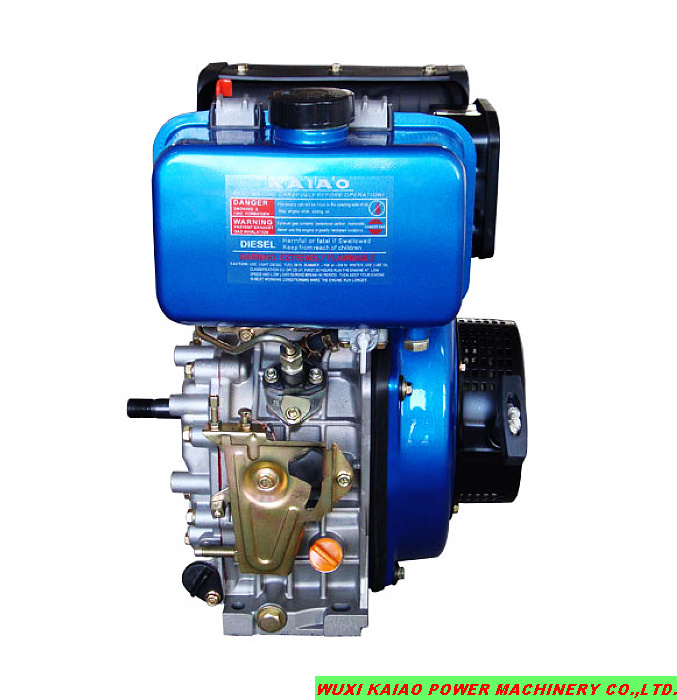

Diesel Engine Air Cooled for Boat Use
| Price: |
US $ 203/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
Diesel Engine (178F)
1. Beautiful appearance, best quality, reasonable price
2. CE approved powerful output
3. Light and handy in structure
4. Simple installation & stable operation
5. Fuel-saving, quick starting
6. Low noise & convenient maintenance
7. Green power environmentally friendly
8. Wide application, such as generating sets & water pump| WUXI KAIAO POWER MACHINERY CO., LTD |
| Model | KA178F |
| Rated output(HP/rpm) | 5HP/3000rpm, 5.5HP/3600rpm |
| Rated output(KW/rpm) | 3.7KW/3000rpm, 4.4KW/3600rpm |
| Engine type | Single-cylinder, vertical, four-stroke, air-cooled, direct injection |
| Cylinder Diameter*stroke(mm) | 78X62 |
| Piston displacement (L) | 0.296 |
| Compression ratio | 20 |
| Rated power/Rated speed(kW/rpm) | 3.68/3000 4/3600 |
| Max. no-load speed(r/min) | 108% of Rated rotary speed |
| Min. no-load speed(r/min) | 1300 |
| Lubrication system | Pressure splash Type |
| Engine starting system | Recoil starter or Electric starter |
| Output terminal rotation | AnticlockWise |
| Fuel oil model | Summer: 0#, Winter: -10# |
| Fuel tank capacity (L) | 3.5 |
| Fuel consumption rate(g/kW. h) | 276.1/3000 285.6/3600 |
| Oil consumption rate(g/kW. h) | 4.08 |
| Oil grade | CD grade or SAE10W-30, 15W-40 |
| Valve clearance(cold state) mm | 0.10-0.15 |
| Lube oil capacity (L) | 1.1 |
| Starting motor (V, kW) | 12V 0.8kW |
| Charging generator(V, A) | 12V 3A |
| Battery capacity(V, AH) | Above 12V-36AH |
| Dimension (L*W*H)(mm) | 480*435*520 |
| Net weight(kg) | 33 |
| Prod Model: |
KA178F |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Output Power: |
5HP |
| Fuel: |
Diesel Engine |
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)
Air-cooled diesel generator light tower(400W-10000W)
Air-cooled gasoline generator (650W-5000W)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.
We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
