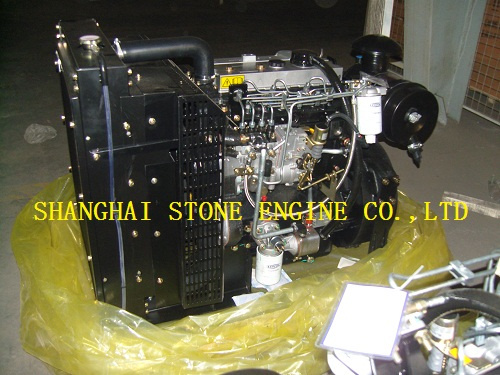

Shanghai Stong Diesel Engine Co., Ltd can supply 1004-4T diesel engine
Item 1003B-3T 1003C-3T 1003C-3TA 1003D-3TA
Cylinder number 3 3 3 3
Cylinder arrangement In line In line In line In line
Induction system Turbocharged Turbocharged Turbocharged air-to-air charge cooled Turbocharged air-to-air charge cooled
Borexstroke (mm) 100X127 100X127 100X127 100X127
Displacement (L) 3 3 3 3
Compression ratio 17.5 17.5 17.5 17.5
Firing order 1, 2, 3 1, 2, 3 1, 2, 3 1, 2, 3
Rated power / speed ( kW/rpm ) 55/2200 45/2200 58/2200 58/2200
Maximal torsion/ speed (N. M/rpm) 310/1600 250/1600 325/1600 320/1600
Min. Fuel consumption (g/kWh) < =210 < =210 < =210 < =210
Average sound dB(A) 96 96 96 96
Emission Tier1 Tier2 Tier2 Tier3
Weight (kg) 205 210 220 260
Overall dimensions (mm)AxBxC 570X650X806 570X650X806 570X650X806 570X650X806
Item 1004-4 1004-4T 1004D-4TA 1004-4TW
Cylinder number 4 4 4 4
Cylinder arrangement In line In line In line In line
Induction system Naturally aspirated Turbocharged Turbocharged air-to-air charge cooled Turbocharged air-to-air charge cooled
Borexstroke (mm) 100X127 100X127 100X127 100X127
Displacement (L) 3.99 3.99 3.99 3.99
Compression ratio 16.5 17.5 17.5 17.5
Firing order 1, 3, 4, 2 1, 3, 4, 2 1, 3, 4, 2 1, 3, 4, 2
Rated power / speed ( kW/rpm ) 58/2200 74/2300 74/2200 81/2300
Maximal torsion/ speed (N. M/rpm) 260/(1400-1600) 336/(1400-1600) 390/(1400-1600) 405/(1400-1600)
Min. Fuel consumption (g/kWh) < =225 < =230 < =220 < =220
Item 1006-6 1006-6T 1006-6TA 1006D-6TA
Cylinder number 6 6 6 6
Cylinder arrangement In line In line In line In line
Induction system Naturally aspirated Turbocharged Turbocharged air-to-air charge cooled Turbocharged air-to-air charge cooled
Borexstroke (mm) 100X127 100X127 100X127 100X127
Displacement (L) 5.99 5.99 5.99 5.99
Compression ratio 16.5 17.5 17.5 17.5
Firing order 1, 5, 3, 6, 2, 4 1, 5, 3, 6, 2, 4 1, 5, 3, 6, 2, 4 1, 5, 3, 6, 2, 4
Rated power / speed ( kW/rpm ) 88/2400 114/2300 142/2300 115/2300
Maximal torsion/ speed (N. M/rpm) 410/(1400-1600) 568/(1400-1600) 740/(1400-1600) 610/1600
Min. Fuel consumption (g/kWh) < =220 < =215 < =215 < =215
Average sound dB(A) 98.7 98.7 98.7 93
Emission Tier1 Tier1 Tier2 Tier3
Weight (kg) 410 419 430 430
Overall dimensions (mm)AxBxC 945X610X780 945X677X780 945X677X780 945X677X780
Model Phaser 110Ti Phaser 135Ti Phaser 160Ti Phaser 180Ti Phaser 210Ti Phaser 230Ti Phaser 135Ti-S30 Phaser 160Ti-S30 Phaser 180Ti-S30 Phaser 210Ti-S30 Phaser 135Ti-30 Phaser 160Ti-30 Phaser 180Ti-30 Phaser 210Ti-30
Cylinder number 4 6 4 6 6
Bore X Stroke 100 X 127(mm)
Displact 3.99 5.99 3.99 5.99 5.99-ment(L)
Type In line, vertical, water cooled, four stroke, dry liner, direct injection
Aspiration Turbocharged & Charge cooled Turbochargedcharge cooled
Rated power (kW/HP) 81/ 101/ 118/ 134/ 156/ 170/ 101/ 118/ 134/ 156/ 101/ 118/ 134/1 156
110 135 160 180 210 230 135 160 180 210 135 160 80 210
Rated speed(r/min) 2600 2600 2600 2600 2500 2500 2500 2500 2500 2500 2500 2500 2500 2500
Net weight(kg) 458 480 575 578 578 578 458 575 578 578 458 575 575 575
Fuel pump type Mechanical pump Monomer pump Mechanical pump
Model 1003G 1003TG 1004G 1004TG 1006TG1A 1006TG2A 1006TAG
Cylinder number 3 3 4 4 6 6 6
Type In line, vertical, water cooled, four stroke, dry liner, direct injection
Induction Natural Turbocharged Natural Turbocharged Turbocharged, intercooled
Bore*Stroke(mm) 100*127
Displacement(L) 3 3.99 5.99
Lubricating system capacity(L) 7.48-8.68 8.1 8.5 16.1 16.1 19
Cooling system capacity(L) 21 22.2 27.7 27.7 37.22
Rated power (kW) 1500r/min 30 44 44 72.3 92.7 102 134
1800r/min 36 55 48 83.2 107.3 119.2 14
Shanghai STONE DIESEL ENGINE Co., Ltd
As a leading manufacturer and supplier in China, Shanghai Stone Diesel Engine Co., Ltd is specialized in complete engine DEUTZ/KHD, CUMMINS, ISUZU and CATERPILLAR. We are also the supplier spare parts. Such as crankshaft, camshaft, con rod, cylinder head, cylinder block, cylinder liner, piston, piston ring, engine valve, engine bearing, oil nozzle, oil seal, oil pump, fuel pump, water pump, turbocharger, and so on.
Our products have exported many countrys.
Shanghai Stone Diesel Engine Co., Ltd supply the China products which are made by joint venture with international engine and engine parts, for example MAHLE IZUMI, Mahle, Elring, Bosch, Payen, Federal-mogul, TP, Holset, S. Valeo, Garrett, Borg-Warner, KKK, ZF, Eaton, Fuller, GKN, Thomson products which made in China under strict quality control and international quality standards.
We aim to be a top class supplier for worldwide OEM and aftermarket!
Hope build good business relationship with all company which is do business in this field.
