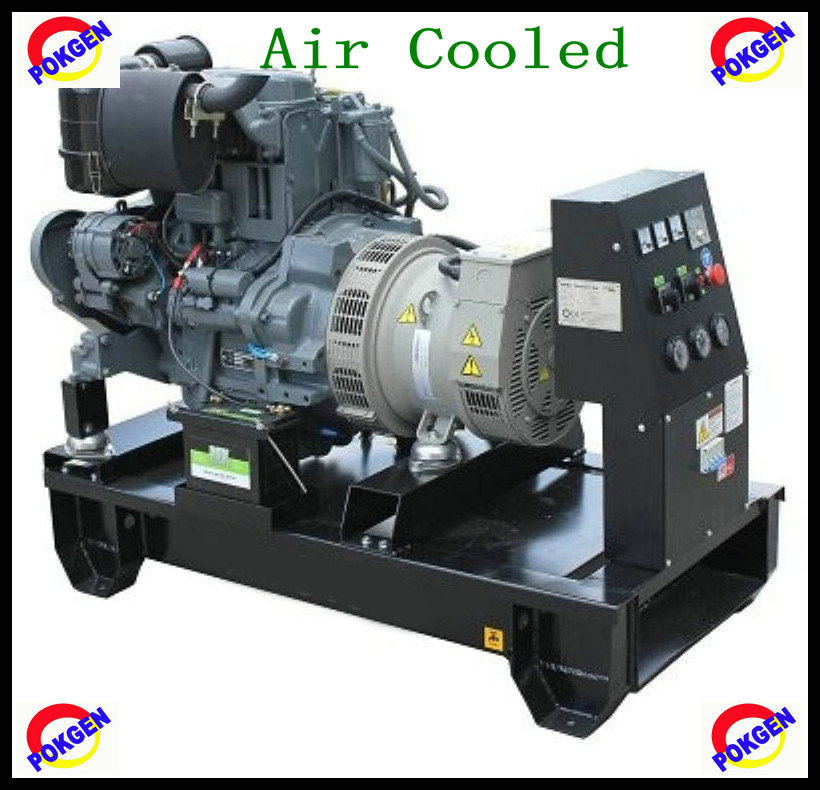

16kw Air Cooled Deutz Power Generator Set
Deutz engine, new brand Deutz generator
1)Generator Set Data
· Prime power: 16kw/20kVA
· Volt. &freq.: 240/400V, 50Hz others for your choice
· Open /silent type, waterproof, dustproof
· Big fuel tank capacity running for 8 hs continuously
· Accessory: Battery cables, exhaust silencer, flexible pipe
· CE, ISO, SONCAP Certificate
2)Deutz Engine Data
· Water cooled, electric governor method, with radiator cooling and battery charging alternator
3)Alternator Data
· Leroy Somer, Stamford, Marathon, Faraday...For your option
· Single bearing, 0.8/1pf, brushless, IP23, H, with AVR
4)Controller Panel
· Deepsea702A/501, Smartgen HGM72 for standards; AMF/ATS for your optional
5)Factory Testing
· At least 1 hour genset testing under 0, 25%, 50%, 75%, 100%, 110% load.
· Providing factory test report
6)Warranty
· Global warranty
· 12 months from the date of commissioning or 1000 running hours, which comes first
|
Air cooled Deutz 50HZ(1500RPM)-3Phase 400V/230V |
|
MODEL |
STANDBY |
PRIME |
ENGINE MODEL |
DIMENSION (L*W*H)mm |
Technical Data |
|
50HZ |
KVA |
KW |
KVA |
KW |
|
POKD1-12GF |
16.5 |
13.2 |
15 |
12 |
F 912D |
1300*800*1150 |
Download |
|
POKD1-16GF |
22 |
17.6 |
20 |
16 |
F 912D |
1400*800*1150 |
Download |
|
POKD1-20GF |
27.5 |
22 |
25 |
20 |
F 912D |
1400*800*1150 |
Download |
|
POKD1-24GF |
33.125 |
26.5 |
30 |
24 |
F 912D |
1550*800*1150 |
Download |
|
POKD1-30GF |
40 |
32 |
37.5 |
30 |
F 912D |
1550*800*1150 |
Download |
|
POKD1-32GF |
43.75 |
35 |
40 |
32 |
F 912TD |
1550*800*1150 |
Download |
|
POKD1-40GF |
55 |
44 |
50 |
40 |
F 912D |
1800*800*1150 |
Download |
|
POKD1-45GF |
62.5 |
50 |
56.25 |
45 |
F 913D |
1800*800*1200 |
Download |
|
POKD1-50GF |
68.75 |
55 |
62.5 |
50 |
F 913TD |
1800*800*1200 |
Download |
|
POKD1-60GF |
82.5 |
66 |
75 |
60 |
BF 913D |
1800*800*1200 |
Download |
|
Air cooled Deutz 60HZ(1800RPM)-3Phase 220V/127V |
|
MODEL |
STANDBY |
PRIME |
ENGINE MODEL |
DIMENSION (L*W*H)mm |
Technical Data |
|
60HZ |
KVA |
KW |
KVA |
KW |
|
POKD1-14GF-60 |
19 |
15 |
17 |
14 |
F 912 |
1200*800*1150 |
Download |
|
POKD1-24GF-60 |
33 |
26 |
30 |
24 |
F 912 |
1300*800*1150 |
Download |
|
POKD1-32GF-60 |
45 |
36 |
41 |
33 |
F 912 |
1550*800*1150 |
Download |
|
POKD1-40GF-60 |
58 |
46 |
53 |
42 |
F 912T |
1550*800*1150 |
Download |
|
POKD1-35GF-60 |
47 |
38 |
43 |
35 |
F 913 |
1550*800*1150 |
Download |
|
POKD1-48GF-60 |
67 |
54 |
61 |
49 |
F 912 |
1800*800*1150 |
Download |
|
POKD1-65GF-60 |
89 |
72 |
81 |
65 |
F 912T |
1800*800*1150 |
Download |
|
POKD1-55GF-60 |
75 |
60 |
68 |
55 |
F 913 |
1800*800*1200 |
Download |
|
POKD1-70GF-60 |
97 |
77 |
88 |
70 |
BF 913 |
1850*800*1200 |
Download |
|
POKD1-95GF-60 |
131 |
105 |
119 |
95 |
BF |
1850*800*1200 |
Download |
