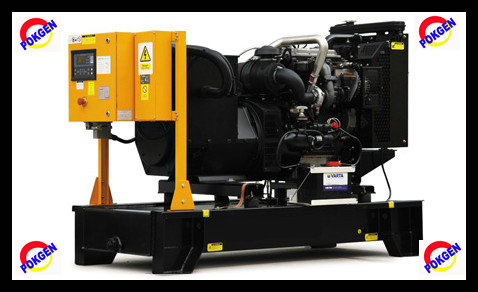

Lovol Power Generator (POK-LOVOL)

Generator set Specifications:
1) Composed of diesel engine and alternator
2) Output range: 16KW TO 1110KW (20kVA - 13750kVA)
Rated current: 28.9A - 1984.7A

Rated speed: 1, 500rpm(1800rpm for option)
Rated frequency: 50Hz(60 also available)
Rated voltage: 400 / 230V
Silent level: <75dB

Engine Features:

Lovol Series Diesel Generator Set is a set of complete equipment for electrical power supply. Lovole engines and high quality alternators and advanced full automatically control system are produced through strict test, which together provides reliable power no matter as standby, prime or continuous use.

Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23 enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤ ± 1% THF < 5%, low radio interference

Control system:
1 a) Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
B) Operation display:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible and visual alarm lamps and buzzers
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
4 Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40° C

Standard configuration supply scope:
(1)Diesel engine with all accessories, 3 filter, electrical systems.
(2)Alternator.
(3)Steel structure.
(4)Fan and water cooling system.
(5)Flange connector.
(6)12V/24vstarting motor and charge engine.
(7)Air cleaner, fuel cleaner, oil cleaner.
(8)On-board control panel.
(9)MCCB air conservation switch.
(10)12V/24V starting accumulator and battery line.
(11)Set shock absorber.
