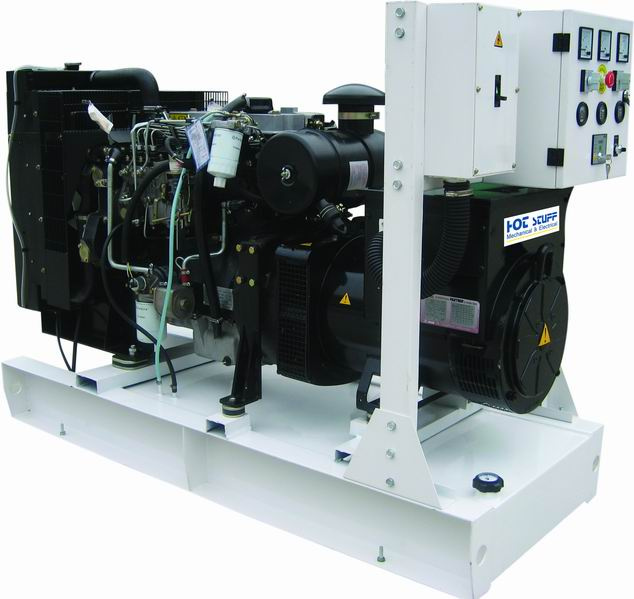

Weifang diesel generator
Beautiful appearance design
High reliability low in fuel consumption
Convenient operation, reasonable price
Output range: 8kw (12, 5kVA)-120kw/150kVA
Stable performance overload protection
Speed 1500rpm/1800rpm
Frquency: 50Hz/60Hz rated voltage: 230V/400V
Rated current 14.4A-900A
Motor: Brush or brushless st or stc
Output type: AC three phase
Optional: Automatic switch and control box
Color: Yellow, orange green, white
|
MODEL |
GF1-120KW |
|
Powered by Weifang Engine |
|
Continuous Power (50HZ) |
120KW/150KVA |
|
Standby Power (50HZ) |
129KW/161KVA |
|
Engine Model |
6105IZLD |
|
Engine Power (50HZ) |
135KW/169KVA |
|
Engine Max Power (50HZ) |
145KW/181KVA |
|
Speed |
1500rpm |
|
Fuel Consumption |
224 g/kw. h |
|
Cooling Method |
Water - cooled |
|
Starting Method |
24V DC electrical start |
|
Alternator Model |
TFW-120 |
|
Alternator Power |
120KW/150KVA |
|
Voltage |
380/220V |
|
Electric Current |
216A |
|
Power Factor |
0.8 |
|
Phase |
3-phases |
|
Brush/Brushless |
Brushless |
|
G. W/N. W |
2700/2540 KGS |
|
Overall Size |
2820x1230x1660 MM |
|
20FT |
5 PCS |
|
OPTIONAL |
|
|
Panel |
Auto Transfer Switch (ATS) Control Panel |
|
ATS |
Electricity Output Cabinet (≥ 75KW better chose) |
As a manufacturer, we specialize in producing big water cooled diesel generator from 8KW to 500kw above. Air cooled gasoline/ diesel engine, small air cooled gasoline/diesel generator set, gasoline/diesel water pump sets, concrete cutter, plate compactor, light tower, high pressure washer and so on products. Have about 10 year experience. Punctual delivery, good quality, competitive price.
If you are interested in any our products, pls let me know. We promise to supply you good quality and service you at first time!
Welcome your any enquiry! Hopefully, we can develop best with your cooperation!
