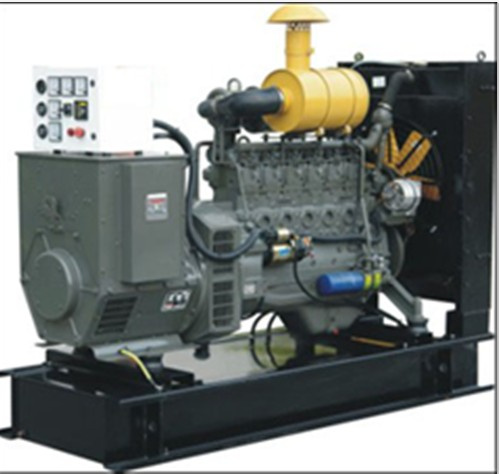

25-150kVA generator set which adopts the Deutz(Sino-Germany) series diesel engine, equipped with some famous brushless excitation alternators(Marathon, Stamford, etc. ) and intelligent control panels.
The diesel generator set has auto protective device, it can control and protect the water temperature, oil temperature, oil pressure, and the speed.
It has many advantages such as automatic speed regulation, automatic voltage regulation, good dynamic performance, stable fluctuation form of voltage, high efficiency, excellent reliability, long service life, etc.
These generator sets can be combined as power station group with automatic start system and ATS, etc. According to the customer's request.
DEUTZ was founded 1864 in Cologne, Germany. Now DEUTZ is the world's oldest engine manufacturer. DEUTZ, with annual sales of about Euro1, 200 million, is one of the leading independent suppliers of diesel and gas engines in the world.
Model | Power (kw/kVA) | Engine Model | Alternator Model | Dimension | Weight |
Prime | Standby | Open Type | Sound Proof | Open Type | Sound Proof |
RDL28 | 28/35 | 30.8/38.5 | D226B-3D | LSA43.2S1 | 1650×760×1350 | 2500×1000×1500 | 720 | 1450 |
RDL40 | 40/50 | 44/55 | TD226B-3D | LSA43.2S35 | 1650×760×1350 | 2500×1000×1500 | 740 | 1450 |
RDL54 | 54.4/68 | 59.8/75 | TD226B-4D | LSA43.2L68 | 2000×760×1400 | 2650×1000×1550 | 1000 | 1700 |
RDL80 | 80/100 | 88/110 | TD226B-6D | LSA44.2S75 | 2200×800×1500 | 2900×1080×1650 | 1250 | 1850 |
RDL100 | 108/135 | 118.8/149 | TBD226B-6D | LSA44.2S75 | 2300×800×1550 | 3200×1080×1650 | 1450 | 2150 |
RDL120 | 120/150 | 132/165 | TBD226B-6D5 | LSA44.2M95 | 2400×800×1550 | 3200×1080×1650 | 1500 | 2350 |
