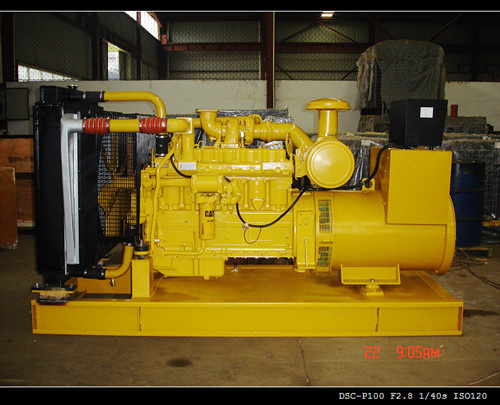

These generator set which adopts the SC(CAT) series diesel engine, equipped with some famous brushless excitation alternators(Marathon, Stamford, etc. ) and control panels(DeepSea UK).
The diesel generator set has auto protective device, it can control and protect the water temperature, oil temperature, oil pressure, and the speed.
It has many advantages such as automatic speed regulation, automatic voltage regulation, good dynamic performance, stable fluctuation form of voltage, high efficiency, excellent reliability, long service life, etc.
These generator sets can be combined as power station group with automatic start system and ATS, etc. According to the customer's request.
SC11(CAT) Engine is manufactured by SDEC on the basis of US Caterpiller company's license, and its original model is 3300 series diesel engine. This range of diesel engines not only remain Caterpiller 3300 series diesel engine's properties like high reliability, long service life, easy maintenance, but also possess the advantages like energy-saving, low-noise, low emission. The said diesel engine adopt those advanced technologies like supercharge, intermediate cooling, etc, thus greatly reducing the diesel engine's noises, and the main attachments are integrated on the engine, that makes the engine is of compact, good-looking appearance, easy assembly and maintenance, so this is the domestic and overseas user's first optional product.
| SC11(CAT) Series Generator Set 50/60Hz 230V/400V |
| Model | Power (kW / kVA) | Engine Model | Alternator Model | Dimension | Weight | | Prime | Standby | Open Type | Open Type | | RSM50 | 50/63 | 55/69 | SC5D108D | MP-50-4 | 2416×1035×1840 | 1750 | | RSM75 | 75/94 | 82/103 | SC5D108D | MP-75-4 | 2871×1100×1897 | 2500 | | RSM80 | 80/100 | 88/110 | SC5D122D | MP-80-4 | 2871×1100×1897 | 2500 | | RSM90 | 90/113 | 99/124 | SC5D145D | MP-90-4 | 2871×1100×1897 | 2760 | | RSM120 | 120/150 | 132/165 | SC8D200D | MP-120-4 | 2979×1220×2000 | 2760 | | RSM150 | 150/188 | 165/206 | SC8D220D | MP-160-4 | 2979×1220×2000 | 3100 | | RSM160 | 160/200 | 176/220 | SC9D245D | MP-160-4 | 3140×1400×2150 | 3150 | | RSM190 | 190/238 | 209/261 | SC9D280D | MP-200-4 | 3450×1420×2150 | 3900 | | RSM200 | 200/250 | 220/275 | SC11C300D | MP-200-4 | 3450×1420×2200 | 3900 | | RSM220 | 220/275 | 242/303 | SC11C350D | MP-220-4 | 3450×1420×2200 | 4000 |
|
