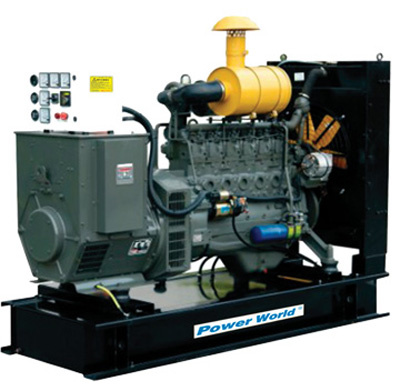

Deutz Diesel Generator

Deutz powered generator sets-226b-3 series

Output power: 16kw-550kw

Quality standards

Our diesel generating sets meets the following standards:

ISO8528-1993, bs4999, bs5000, bs5514, GB/t2820-1997, iec34, VDE0530, nema mg-122, GB755, CSA22-2, as-1359.

Factory test
Each Power World generating sets must be got through 2 hours load test for running 0%, 25%, 50%, 75%, 100% and 110% load before dispatch, all protective devices, control functions are simulated and it's system checked, proved and then passed for dispatch. A test certificate can be provided upon request.

General generating set features

1. The complete generator set is mounted, as a whole, on a heavy duty fabricated, welded steel skid base frame;

2. The engine and alternator are directly coupled by means of an sae flange so that there is no possibility of misalignment after prolonged use. The engine flywheel is flexibly coupled to the alternator rotor and full torsional evaluation has been carried out to guarantee to no harmful vibration will occur in the assembly.

3. Anti- vibration pads are affixed between engine/alternator feet and the base frame, thus ensuring complete vibration isolation of the rotating assemblies and enabling the machine to be placed on an uneven surface without any detrimental effects;

4. Integrated gcu control system provides multiple alarm channels to protect engine.

Diesel engine - deutz

The deutz d226b serial engine is from the world famous company-deutz mwm, Germany, now made in joint venture company-weichai deutz Co., Ltd.

1.226b serial engine with compact size, economic, good adaptability and high reliability, it is proven by more than 400, 000 226b diesel engines now running over the world;

2. Low fuel and oil consumption with long overhaul service intervals, convenience for operation and maintenance profiting customer for operation costs saving;

3. High reliability and endurance with all the mobile parts, such as crankshaft, connecting rod and camshaft are made of alloy. The camshaft and crankshaft are also processed by high frequency hardening;

4. Mobile parts are distributed averagely and special vibration reducer is set on the front of the engine, so vibration and noise are very lower comparing to other diesel engines.

Alternator-stamford
The first-class brand of generator which is on the leading status in the world.

1. Screen protected and drip-proof protection, self-regulating brushless alternator with fully interconnected damper windings, and dynamically balanced rotors with sealed for life bearings. 12 wire re-connectable windings provide a wide range of 3-phase voltage.

2. The insulation system is class h, easy paralleling with mains or other generators, standard 2/3 pitch stator windings avoid excessive neutral currents;

3. Backed by worldwide service network.
