Beautiful appearance design
High reliability low in fuel consumption
Convenient operation, reasonable price
Output range: 20kw (25kVA)-120kw/150kVA
|

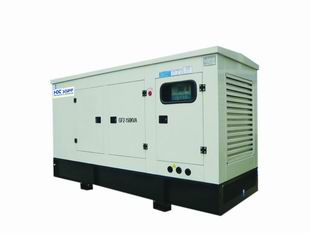

MODEL |
GF2-48KW/60kva |
|
Powered by Deutz Engine |
|
Continuous Power (50HZ/60HZ) |
48KW/60KVA |
|
Standby Power (50HZ/60HZ) |
50KW/63KVA |
|
Engine Model |
TD226B – 4D |
|
Engine Power (50HZ) |
60KW |
|
Engine Manufacturer |
Sino-Germany joint venture Weichai – Deutz Co., Ltd |
|
Speed |
1500rpm/1800rpm |
|
Fuel Consumption |
≤ 208 g/kw. h |
|
Lubricating Oil Consumption |
≤ 1.36 g/kw. h |
|
100% Load Fuel Consumption |
13.6 Lwhen continuous power |
|
15 Lwhen standby power |
|
Cooling Method |
Water - cooled |
|
Starting Method |
24V DC electrical start |
|
Engine Total Dispalecment |
4.16 L |
|
Compress Ratio |
16: 1 |
|
Bore X Stroke |
105 x 120 mm |
|
Alternator Model |
Stamford copy 224E |
|
Alternator Power |
48KW/60KVA |
|
Voltage |
380/220V |
|
Electric Current |
90A |
|
Power Factor |
0.8 |
|
Phase |
3-phases |
|
Brush/Brushless |
Brushless |
|
Insulation Class/Protection Grade |
H Class/IP23 |
|
G. W |
1600 KGS |
|
Overall Size |
2300x1080x1400 MM |
|
20FT |
5 PCS |
|
OPTIONAL |
ATS(AUTO TRANFORE SWITCH) |
|
|
Auto Battery Charger |
|
|
Base fuel tank (for open type) |
As a manufacturer, we specialize in producing big water cooled diesel generator from 8KW to 500kw above. Air cooled gasoline/ diesel engine, small air cooled gasoline/diesel generator set, gasoline/diesel water pump sets, concrete cutter, plate compactor, light tower, high pressure washer and so on products. Have about 10 year experience. Punctual delivery, good quality, competitive price.
If you are interested in any our products, pls let me know. We promise to supply you good quality and service you at first time!
Welcome your any enquiry! Hopefully, we can develop best with your cooperation!
