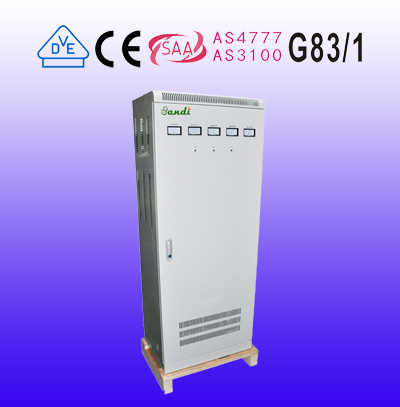

PV grid-connected power system includes PV modules, grid-connected inverter, meter and power switch board. The PV sine wave series inverter is one of the most advanced DC to AC conversion products in the world, the main advantages is high quality sine wave AC output, microcomputer control, humanness design, it is simple, stable, no noise and no pollution. It is suitable use for areas without electricity, vehicles, ships, solar energy, wind turbine etc. The inverter also can supply AC voltage to all kinds of power tools, air conditioners, electric motors, refrigerators, fluorescent lights, televisions, electric fans and other power supply. The inverter output waveform is sine wave, this kind of AC power is suitable for most industrial electronics and home appliances, the power supply features much better than other modified sine wave and square wave.
|
Model |
SDP- 10KP |
|
Rated power |
10000W |
|
DC input voltage |
192V, (220V, 240V) |
|
Maximum discharge current |
31A |
|
Output current |
45A |
|
AC output waveform |
Pure sine wave |
|
Charge current |
10% according battery capacity |
|
Charge function |
Charger outside(can choose) |
|
Top Instant maximum power |
150% technical data, 10sec |
|
Output voltage |
110VAC, 220V AC ± 3% |
|
AC output frequency |
50Hz/60Hz± 0.05Hz |
|
No-load power |
0.8A DC |
|
Waveform distortion (THD) |
≤ 5%(Linear load) |
|
Inverter efficiency |
≥ 90% |
|
Work environmental temperature |
-10-60 |
|
Work environmental elevation |
≤ 1000m |
Yueqing Sandi Electric Co., Ltd specialized in the new energy source and electrical source scientific research, development, manufacture and service had surpasses for 10 years of electrical source field; Which recognized by widely customers according to entirely varieties, high quality and service first. At present, the researched products by our company basically contain the best product at home and abroad, which delegated the top level of electrical source manufacture all over the world. The main products are: PV Grid-Connected Inverter, Solar Inverter, PV Solar Pumping Inverter, Water Pumping Inverter, Grid Tie Inverter, On Grid Inverter, Solar pumping inverter, Wind Turbine Controller, Solar Charge Controller, Pure Sine Wave Inverter, Off-Grid Inverter, power Inverter. The products of company are widely applied in fire fighting, construction, industry, new energy source, civilian use, finance, business tax, electric power, medical treatment, aviation, automatically control system of war industry and national heavy engineering project.
SANDI Electric Company insist on technology as forerunner, keep long-term, good research cooperation with all universities; Fetch in and absorb international advanced technology, built strictly quality control system.
We will take the work objective of "unremitting exploration, endeavor and innovation, honesty and dedication, perfect and practicality" and quality guideline of "criterion management, intensive manufacture, quality first, service with all hearts". Seek excellence, value innovation!
We will ceaselessly struggle and create refulgence with you together.
