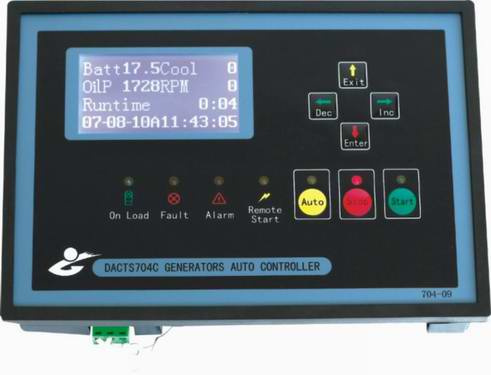

The DACTS704C is a microcontroller-based diesel generator automatic controller, it has a modular concept\high reliability and easy operation, designed to provide the functions necessary for emergency supply.
The controller monitors the status of diesel generator at real-time, automatically starts and stops the diesel generator. It is provided the self-protective function, when a generator fault occurs, the 'alarm' lamp will illuminate, if the fault isn't eliminated after an appropriate time delay ends, the diesel generator will shut down in emergency.
1. Main function
*automatically start and stop the generator.
*automatically shut down the diesel on fault condition.
*monitor 12 analogue as generator voltage, load current, generator speed, and so on.
*8channels of digital inputs and 8 channels of relay outputs
*Remote communication RS232, free PC software for configuration.
*LCD display in English or Chinese, LED indicate
2. Specification
Power Supply: DC12V(8 to 18V)DC24V(18 to 36V)
Generator Voltage input Range: 0 to 450V AC, 3 phase 4 wire
Generator current input Range: 0 to 5A AC
Generator Frequency input Range:
0 to 99Hz at rated diesel speed
Relay output: 1 AMP DC
Operating Temperature Range:
-10ºC to +60ºC
Store Temperature Range:
-20ºC to +75ºC
Overall dimension: 206 X 146 X 44mm (W X H X D)
Cut-out for fix dimension: 197X136mm (W X H)
Guilin GM Technology Industry Ltd.Was founded in 1999, (is) located in world(-wide) famous tour city- Guilin, China, engaged in a micro-computer and industrial automation control products, research and development, production and marketing of high-tech enterprises.The company has a sound quality management system, strong R & D strength and efficient management mechanism, as well as advanced R & D and production facilities.After 10 years of hard-working and continuous improvement, the company has developed from small scale to a large company.
At present, the main products are DACTS series diesel generating units automatic control, special vehicles, automatic control engineering, Screw Compressors intelligent controller series, the central air-conditioning controller, hot and cold water unit controller, GPS terminal on-board control, System monitoring software platform, and so on.Cost-effective and reliable high-end clients in the telecommunications and the acclaim, military, transportation, building and many other intelligent end-user in widespread use.
The company also introduces advanced monitoring and control of new products according to the needs of the market, at the same time as the need for industrial upgrading and updating of GM's customers systems integration solutions
