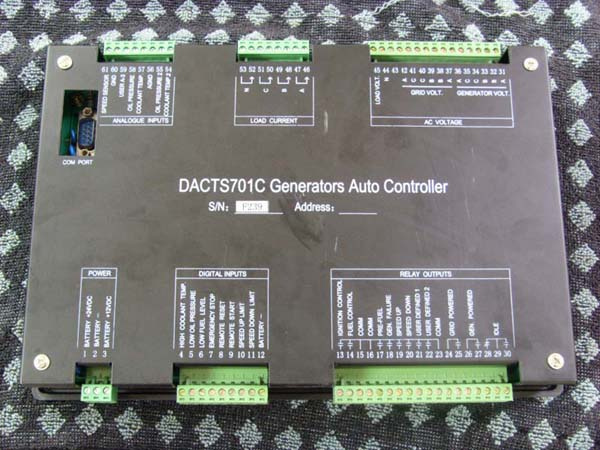

The DACTS701C is a microcontroller-based engine generator module. It has a modular concept, designed to provide the functions necessary for emergency supply.
The module is used to monitor the grid voltage and the generator voltage at real time and automatically transfer load between grid and generator, and when a generator fault occurs, the engine generator will shut down in emergency, then the "failure" LED on the front panel lights on and the LCD displays the reason or status of the fault.
The optional serial port is a standard RS-232C capable of communicating directly with a personal computer (PC) or any Hayes-compatible modem.
1. Main function
*automatically start and stop the generator & transfer the load
*automatically shut down the generator on fault condition
*monitor the main and generator supply status at real time
*monitor analogue inputs as: Main volt, generator volt, load current, battery volt, water temperature and so on
*8 channels digital inputs and 9 channels relay outputs
*LCD display and LED indicate
*standard R232 COM PORT, free software
2. Specification
DC Supply:
12V DC(8 To 18V DC), 24V DC(18 To 35V DC)
Max. Operating Current:
250mA at 12V DC, 150mA at 24V DC
Generator Input Voltage Range:
0 To 450V AC, 3 phase 4 wire or 3 phase 3 wire
Generator Input Frequency Range:
0 To 99Hz at rated engine speed (Minimum: 15V AC pH-N)
Relay output:
1 AMP DC at supply voltage
Operating Temperature Range:
-10º C To +60º C
Store Temperature Range:
-10º C To +70º C
Overall dimensions: 295X200X53mm(WHD)
The back cover dimensions: 283X188mm (WH).
