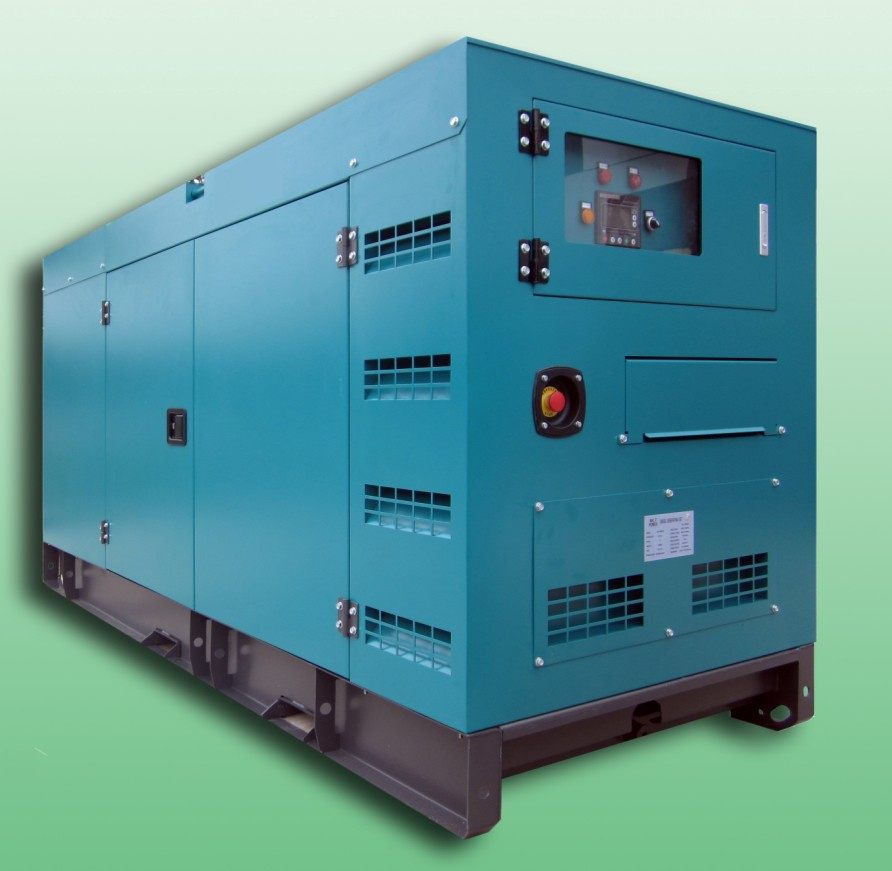

Cummins Silent Generator (20kVA-1250kVA)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Cummins Silent Generator(20kva-1250kva):
Technical Specification for Standard Gen Set:
Gen-set adopt 3 phases& 4 lines output, with output 400V/230V, Frequency 50Hz/60Hz, Power factor 0.8, Neutral point to earth and protective performance complies with NEMA1 and IP22 standard.
Parameter:
Power Factor: 0.8(lagging)
Protection Standard: IP21-IP23
Model of Connection: 3 phase 4 lines
Insulation Grade: H
Frequency Drop(%): ≤ 0.5
Transient state frequency deviation(%): (advertised power) +10~-7
Frequency Recovery Time(S): ≤ 3
Voltage Recovery Time(S): ≤ 4
Waveform Distortion(%): ≤ 5
Features:
High fuel efficiency: Fewer fuel consumption at leading level than other competitive products.
The turbocharger with waste gated design: Optimizes operation across the torque curve resulting in excellent low-end torque.
Compacted yet durable and dependable engine: Cummins engines contain up to 40% fewer parts than competitive engines in its class. This results in a better power-to-weight ration, a less chance of failure and lower repair cost.
Advanced design and manufacturing: Make the engine delivers superior performance and lower cost than competitive engines.
Excellent cold start performance: Optional assistant cold starter with improved 6.6KW starter and intake air heater.
Excellent performance and advantage: Adopt advanced design to achieve higher horsepower and lower weight.
|
Cummins Silent Generator 20kva-1250kva--(50HZ, 400V,1500rpm) |
|
Model |
Engine Model/Power |
Prime |
Standby |
Copy Stamford Model/KW |
Stamford Alternator/kw |
Dimension--Silent L*W*H mm |
Weight--silent type (kg) |
|
KW |
KVA |
KW |
KVA |
|
WD C18 |
4B3.9-G/24 |
18 |
22.5 |
19.8 |
24.8 |
WH184E/18 |
PI144E/20 |
2200*1000*1450 |
1120 |
|
WD C20 |
4B3.9-G/24 |
20 |
25 |
22 |
27.5 |
WH184F/22 |
PI 144G/24 |
2200*1000*1450 |
1120 |
|
WD C20 |
4B3.9-G2/24 |
22 |
27.5 |
24.2 |
30.3 |
WH184F/22 |
PI 144G/24 |
2200*1000*1450 |
1120 |
|
WD C30 |
4BT3.9-G1/36 |
30 |
37.5 |
33 |
41.3 |
WH184H/30 |
PI 144J/32 |
2200*1000*1450 |
1160 |
|
WD C34 |
4BT3.9-G2/36 |
34 |
42.5 |
37.4 |
46.8 |
WHI224C/34 |
PI 144K/34 |
2200*1000*1450 |
1160 |
|
WD C40 |
4BTA3.9-G2/50 |
40 |
50 |
44 |
55 |
WHI224D/40 |
UCI224D/40 |
2400*1000*1450 |
1250 |
|
WD C45 |
4BTA3.9-G1/58 |
45 |
56.3 |
49.5 |
61.9 |
WHI224E/50 |
UCI224E/48 |
2400*1000*1450 |
1270 |
|
WD C58 |
6BT5.9-G1/92 |
58 |
72.5 |
63.8 |
79.8 |
WHI 224F/60 |
UCI224F |
3000*1200*1750 |
2220 |
|
WD C65 |
6BT5.9-G1/92 |
65 |
81.3 |
71.5 |
89.4 |
WHI 224G/70 |
UCI224G |
3000*1200*1750 |
2270 |
|
WD C73 |
6BT5.9-G1/92 |
73 |
91.3 |
80.3 |
100.4 |
WHI 274C/80 |
UCI274C |
3000*1200*1750 |
2290 |
|
WD C80 |
6BTA5.9-G2/116 |
80 |
100 |
88 |
110 |
WHI274C/80 |
UCI274C/80 |
3000*1200*1750 |
1905 |
|
WD C90 |
6BTA5.9-G2/106 |
90 |
112.5 |
99 |
123.8 |
WHI274D/90 |
UCI274D/96 |
3000*1200*1750 |
1955 |
|
WD C100 |
6BTAA5.9-G2/120 |
100 |
125 |
110 |
137.5 |
WHI274ES/100 |
UCI274E/112 |
3000*1200*1750 |
2020 |
|
WD C128 |
6CTA8.3-G2/163 |
128 |
160 |
140.8 |
176 |
WHI274F/128 |
UCI274F/128 |
3000*1200*1750 |
2220 |
|
WD C144 |
6CTA8.3-G2/163 |
144 |
180 |
158.4 |
198 |
WHI274G/150 |
UCI274G/145 |
3300*1400*1950 |
2420 |
|
WD C160 |
6CTAA8.3-G2/183 |
160 |
200 |
176 |
220 |
WHI274H/160 |
UCI274H/160 |
3300*1400*1950 |
2520 |
|
WD C200 |
6LTAA8.9-G2/220 |
200 |
250 |
220 |
275 |
WHI274K/200 |
UCDI274K/200 |
3300*1400*1950 |
2650 |
|
WD C200 |
NT855-GA/234 |
200 |
250 |
220 |
275 |
WHI274K/200 |
UCDI274K/200 |
4000*1800*2300 |
3800 |
|
WD C220 |
NTA855-G1A/291 |
220 |
275 |
242 |
302.5 |
WHI 4D/235 |
HCI 444D/240 |
4000*1800*2300 |
5020 |
|
WD C250 |
MTA11-G3/284 |
250 |
312.5 |
275 |
343.8 |
WHI 4E/260 |
HCI444ES/260 |
4000*1800*2300 |
4250 |
|
WD C256 |
NTA855-G1B/321 |
256 |
320 |
281.6 |
352 |
WHI 4E/260 |
HCI444ES/260 |
4000*1800*2300 |
5160 |
|
WD C280 |
NTA855-G2A/313 |
280 |
350 |
308 |
385 |
WHI 4FS/275 |
HCI444E/280 |
4000*1800*2300 |
4885 |
|
WD C280 |
NTA855-G4/351 |
280 |
350 |
308 |
385 |
WHI 4FS/275 |
HCI444E |
4000*1800*2300 |
5493 |
|
WD C300 |
NTA855-G7/343 |
300 |
375 |
330 |
412.5 |
WHI 4F/300 |
HCI444FS/304 |
4000*1800*2300 |
5050 |
|
WD C320 |
NTA855-G7A/370 |
320 |
400 |
352 |
440 |
WHI 4G/320 |
HCI444F/320 |
4300*2100*2300 |
5050 |
|
WD C360 |
KTA19-G3/403 |
360 |
450 |
396 |
495 |
WHI 5C/360 |
HCI544C/400 |
4300*2100*2300 |
5800 |
|
WD C400 |
KTA19-G4/ 448 |
400 |
500 |
440 |
550 |
WHI 5D/400 |
HCI544C/400 |
4300*2100*2300 |
5900 |
|
WD C400 |
KTA19-G3A/ 448 |
400 |
500 |
440 |
550 |
WHI 5D/400 |
HCI544C/400 |
4300*2100*2300 |
5900 |
|
WD C450 |
KTAA19-G5/ 470 |
450 |
562.5 |
495 |
618.8 |
WHI 5ES/450 |
HCI544D/440 |
4700*2250*2600 |
6450 |
|
WD C470 |
KTAA19-G6/500 |
470 |
587.5 |
517 |
646.3 |
WHI 5E/480 |
HCI544E/488 |
4700*2250*2600 |
6450 |
|
WD C480 |
KTA19-G8/523 |
480 |
600 |
528 |
660 |
WHI 5E/480 |
HCI544E/488 |
4900*2250*2600 |
6800 |
|
WD C500 |
KTAA19-G6A/527 |
500 |
625 |
550 |
687.5 |
WHI 5FS/500 |
HCI544FS/500 |
4900*2250*2600 |
7000 |
|
WD C520 |
QSKTAA19-G3/574 |
520 |
650 |
572 |
715 |
WHI 5F/536 |
HCI544F/536 |
4900*2250*2600 |
7000 |
|
WD C600 |
KTA38-G2/664 |
600 |
750 |
660 |
825 |
WHI 6B/600 |
LV634B/600 |
4900*2250*2600 |
9300 |
|
WD C640 |
KTA38-G2 B/711 |
640 |
800 |
704 |
880 |
WHI 6C/640 |
LV634C/640 |
6000*2600*2800 |
10400 |
|
WD C720 |
KTA38-G2 A/813 |
730 |
912.5 |
803 |
1003.8 |
WHI 6D/728 |
LV634D/728 |
6000*2600*2800 |
10500 |
|
WD C800 |
KTA38-G5/880 |
800 |
1000 |
880 |
1100 |
WHI 6E/800 |
LV634E/800 |
6000*2600*2800 |
10900 |
|
WD C900 |
KTA38-G9/990 |
900 |
1125 |
990 |
1237.5 |
WHI 6F/900 |
LV634F/904 |
6000*2600*2800 |
11800 |
|
WD C1000 |
KTA50-G3/1087 |
1000 |
1250 |
1100 |
1375 |
WHI 6G/1000 |
LV634G/1001 |
6000*2600*2800 |
12300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Self-Starting Diesel Generator |
| Output Type: |
AC Three Phase |
Wuxi Wan Di Power Engineering Group (formerly Wuxi Power Machine Factory) is a state-owned company mainly specializing in developing and manufacturing 6 cylinders, 12 cylinders series diesel engines, diesel generator sets and turbo-chargers etc. It was founded in 1946, one of the first manufacturers of genset in China, which has a good reputation in China till now
Our company named Wuxi Huayou Power Equipment Co., Ltd, a subsidiary corporation of WanDi Group, specializing in manufacturing and exporting various types diesel generator sets. It is one of the pilot enterprises assigned to invent and manufacture national military power supply, has a history of 40 years to supply military power. With an annual output up to 300, 000 KW, it is one of the most important Chinese diesel generator sets suppliers.
The products of our company mainly adopt diesel engines originally imported from Sweden such as Volvo; Joint venture engines that are American or British such as CUMMINS, PERKINS; Domestic engines Weichai or Wandi brand made by our own branch company to match British Stamford, Engga, Faraday alternators. We are OEM manufacturer of these above brands. All these different kinds of genset can be assembled to auto-start, low-noise or moveable sets according to customer' S require. They are widely applied in marine field, key projects, communication hubs, high-rise buildings and infrastructure construction projects.
For many years, we have provided large quantities of diesel generator sets to military equipments; Also provided reserve power supply to national foreign aid projects many times. We have already got great achievements in Southeast Asia, North America, Europe and many African countries such as Vietnam, Thailand, Singapore, Sudan, Egypt, Turkey, America, etc. Because of the Hi-technic, reliable quality nice contour, efficient service net all over the world. Our products are highly salable in both domestic and overseas markets.
Wan Di Series Diesel Generator Sets are enjoying a leading position in the same field nowadays. The generator sets of different types can certainly meet customers' Demands at different levels.
