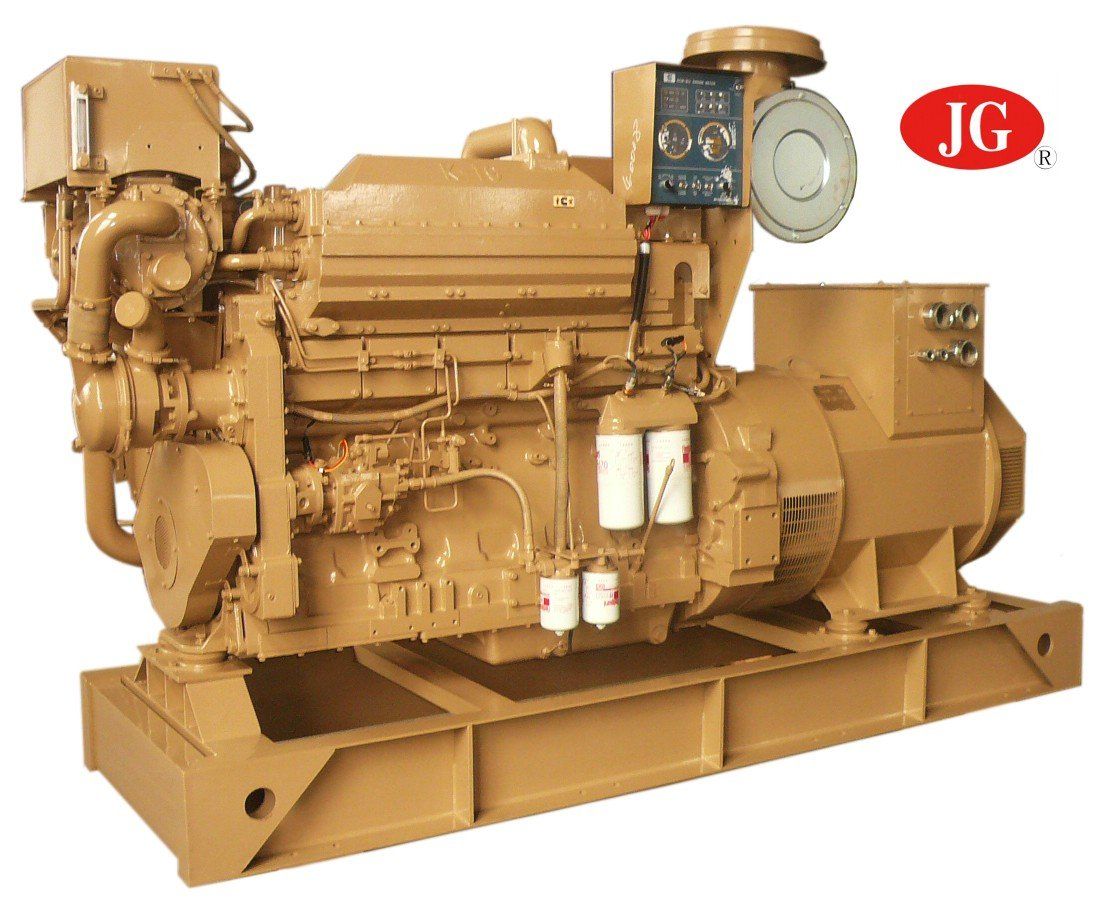

Cummins marine generator set 350kw
1)Powered by cummins engine
2)CCS/BV/ABS Certificate
3)CE Certificate
4)ISO9001: 2008
5)Coupled with Cummins diesel engine and Marathon Alternator
6)24V DC start motor
7)Brushless, Self-excited, IP23, insulation class H alternator
1. Main technical data of marine generator |
1.1 |
Model |
CCFJ350F |
1.2 |
Prime power |
350KW |
1.3 |
Prime voltage |
254V/440V |
1.4 |
Speed |
1800 rpm |
1.5 |
Weight |
3700kg |
1.6 |
Overall dimension |
3150× 1000× 2150mm (just for reference) |
2. Main technical data of engine |
Cummins engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling. |
2.1 |
Brand |
CUMMINS |
2.2 |
Model |
KTA19-DM |
2.3 |
Prime power |
100KW |
2.4 |
Governor type |
Electronic |
2.5 |
Configuration |
4 cycle, 6 cylinder in line |
2.6 |
Cooling method |
By heater exchanger |
2.7 |
Bore/Stroke |
159× 159 mm |
2.8 |
Displacement |
18.9 L |
2.9 |
Starting method |
Electric |
2.10 |
Fuel consumption |
210g/kw. h |
3. Main technical data of alternator |
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. |
3.1 |
Brand |
MARATHON |
3.2 |
Model |
MP-H-350-4 |
3.3 |
Prime power |
350KW |
3.4 |
Configuration |
Brushless, self-exciting |
3.5 |
Prime voltage |
254V/440V |
3.6 |
Frequency |
60 HZ |
3.7 |
Power factor |
0.8(lagging) |
3.8 |
Phase/wire |
3 phase 4 wires |
3.9 |
Isolation |
H |
Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd has been established for over 18 years, reformed from a national military industrial enterprise. Fengde owns a experienced and professional staff group, as well as senior engineer, technician and salesman; Now is known as a leading manufacturer in supplying of diesel generator (for both industrial and marine use) and Vessel Switchboard in China.
We have been authorized by CE and the Quality management system of ISO9001: 2008, and have been appointed as a vessel inspection unit by the China Classification Society CCS. Our marine generator and vessel Switchboard can be approved by CCS, ABS, BV, DNV, GL, LR, GL, RS etc. With steady quality, quick and professional service, Fengde gains general recognition from users domestic and abroad.
We are sincerely looking forward to establishing the business relationship with you for our mutual benefit. We are at your service!
