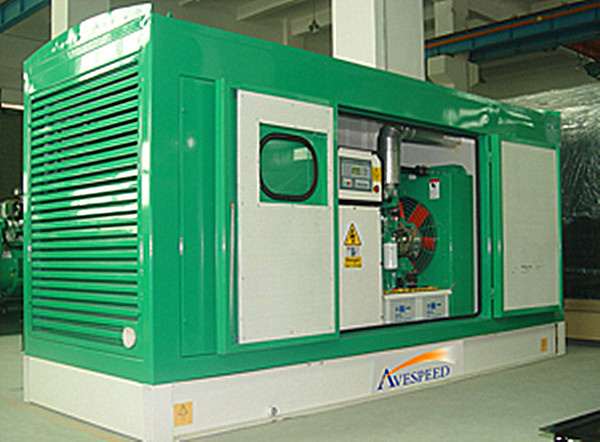

Cummins High Efficiency 140KW-280KW Soundproof Diesel Generator
Engines: Cummins, Alternator: Leroy somer or Stamford
Whole Features
1)Whole hoisting and installation high strength low carbon steel welded bed plate.
2)Built-in shockproof system and advanced coating make it wear-resisting.
3)Features; Heavy load, durable 4 stroke water-cooled engine, excellent transient response
Structure: 4 valves each cylinder, stainless crankshaft, bolt, cast Iron Steel and replaceable humid cylinder liner.
All engine rating data based on ISO 3046/1;
Reference conditions: Ambient 25 centigrade, Total Barometric Pressure: 100kPa, Relative humidity 30%, Intercooler coolant in: 25 centigrade;
Fuel characteristics: Related density: 0.84+-0.005, Lower heat value: 42700kj/kg, Consumption tolerance: +5%;
Power: An overload of 10% is permitted for one hour in every twelve hours of operation.
Characteristics:
1. Meet with: ISO8528, IEC60034, ISO3046
2. Marine medium speed engine driven
3. Brushless self excited alternator with AVR
4. Application: Marine gen-set, Stationary gen-set and Containerized gen-set
5. Easy installation, Low noise, Low operation cost.
| MAIN SPECIFICATIONS OF CUMMINS GENERATOR SETS C140 ~ C280 |
| Continuous Model | C140 | C160 | C200 | C250 | C280 |
| Continuous Output(KW/KVA) | 140/175 | 160/200 | 200/250 | 250/313 | 280/350 |
| TECHNICAL DATA |
| DIESEL ENGINE MODEL | 6CTA8.3-G2 | 6CTAA8.3-G2 | NTA855-G1 | NTA855-G2 | NTA855-G4 |
| Engine Characters | Water-cooled, in line, 4-stroke, direct injection, Wet cylinder liner, 1500rpm |
| Constant Output(KW) | 163 | 183 | 240 | 283 | 317 |
| Standby Output(KW) | 180 | 205 | 265 | 321 | 351 |
| Aspiration | Turbocharged and Aftercooler |
| Bore(mm)xStroke(mm) | 114x135 | 140x152 |
| Piston Speed(m/s) | 6.75 | 7.6 |
| Cubic Capacity(Liters) | 8.3 | 14 |
| Compression Ratio | 17.0:1 | 15:1 |
| Cooling System Volume(L) | 12.3 | 51 |
| Max. Water Temperature | 100ºC |
| Speed Characteristics | The speed stability bandwidt h ± 0.25%. The Steady governing rate ≤ 1% |
| Fuel Consumption | ≤ 210g/kw.h |
| Lube consumption(prime) | ≤ 1.36g/kw.h |
| Radiated Heat to Ambient(KWm) | 24 | 42 | 46 |
| Heat Rejection to coolant (KWm) | 88 | 167 | 187 |
| Heat Rejection to Exhaust(KWM) | 127 | 208 | 212 |
| Fan Cooling air Flow(m3/h) | 19980 | 29380 | 29448 |
| Intake Air Flow(I/s) | 163 | 375 | 408 |
| Exhaust Temperature ( ºC) | 638 | 4850 | 5410 |
| Exhaust Back Pressure | 10Kpa(Maximum) |
| Alternator Model | YHG274G | YHG274H | YHG314C | YHG314E | YHG314F |
| Continuous Output(KW/KVA) | 140/175 | 160/200 | 200/250 | 260/325 | 304/380 |
| Power Efficiency | 92.5% | 93.3% | 92% | 93% | 92.60% |
| Voltage Regulation | ± 1.0% with 4% engine governing |
| Waveform Distortion | No load ≤ 1.5% and non-distorting balanced linear load ≤ 5% |
| THF/TIF | < 2%/ < 50 |
| Fan Cooling Air Flow(l/s) | 514 | 486 |
