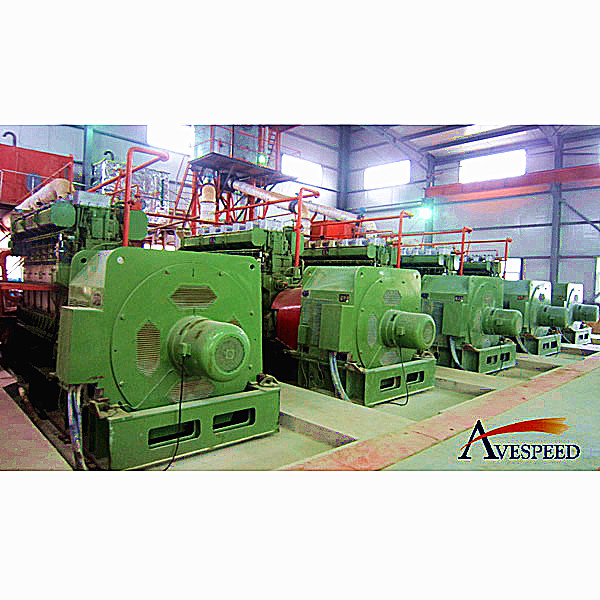

1.6MW(2X800KW)/0.415KV/50Hz HFO power plant(HFO power Generator sets) duel fuel power station provided by AVESPEED
1. Continuous running, low noise, long TBO, low operating cost
2. Low speed with power margin and fuel flexibility
3. Brushless self excited alternator with AVR
4. Marine medium speed engine driven, HFO capacibility
5. Meet with: ISO 8528, IEC60034, ISO3046
1.1 Design input
The diesel generator(2X800KW) unit of the power plant to be supplied and set to work under this contract is to burn HFO in Nigeria as factory industry power.
This technical specification provides the reader with the basic technical data and information required for evaluation of the hfo power plant's technical features and performance. This document shall be the Project's complete Scope of supply.
The essence of the design is simplicity, safety and reliability.
The equipment is designed to prevent accidental contact with moving, hot or tensional parts.
The structure and layout design of the power plant access to all parts for inspection, maintenance and repair.
Main parts and devices like panels, valves, pumps, etc., are marked with engraved name plates, and has verified by AVESPEED power plant projects.
English is used in all documents, correspondence and nameplates.
1.2 Project introduction
At the requirement of the Buyer, the Seller will supply main equipments for the proposed HFO Power Plants for Buyer. The power plant can delivery 1.6MW to factory equipments at site conditions. The power plant is operating with HFO/DO;
|
Item |
Description-2x800KW HFO power plant(Generator sets) |
Specification |
Q,ty |
|
1 |
800GF HFO genset |
800kW/1000rpm, 415V/50Hz |
2 set |
|
Incl. |
|
|
|
Diesel engine |
N6210ZD18 |
|
|
Coupling |
HGT |
|
|
Alternator |
IFC6 502-8LA42 IP23 |
|
|
Common base |
210GFC-01-300 |
|
|
Lube oil cooler |
|
|
|
HT Water cooler |
|
|
|
Water thermovalve |
|
|
|
Lube oil thermovalve |
|
|
|
Air Start motor |
|
|
|
Switchgear 1250A |
GGD |
|
|
2 |
Gen-set Auxilliary Equipment and installlation material |
|
2 set |
|
Cooling Tower |
GBL-50 |
|
|
Exhaust joint bellow |
|
|
|
Exhaust silencer |
|
|
|
Air Compressor |
|
|
|
Air receiver |
|
|
|
Damper |
|
|
|
3 |
Electrical device |
|
|
|
Cooling Tower and air compressor control cabinet |
|
1 |
|
Power plant maintanence power box |
|
1 |
|
Power plant LV distribution panel |
GCS with ATS |
1 |
|
4 |
HFO Purified Module (double) |
Steam Heating |
1 set |
|
5 |
HFO Visc. Booster Module |
Steam Heating |
1 set |
|
6 |
Water soften device |
|
1 set |
|
7 |
Battery charger and Syn panel |
40A |
1 set |
|
8 |
Standard Spare Parts |
|
1 lot |
|
9 |
Special tools and documents |
|
1 lot |
|
10 |
Installation material |
|
1 lot |
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
