| Price: | Negotiable |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
|

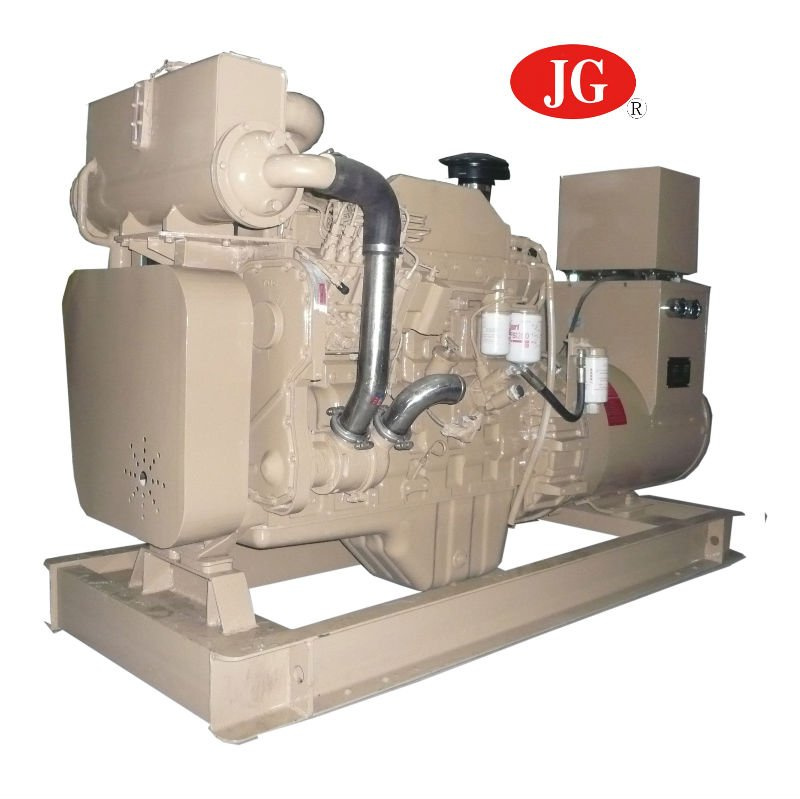

1. Main technical data of gensets |
||
| 1.1 |
Model |
CCFJ800J |
| 1.2 |
Prime power |
800KW |
| 1.3 |
Prime voltage |
230/400V |
| 1.4 |
Speed |
1500 rpm |
| 1.5 |
Weight |
7000kg |
| 1.6 |
Overall dimension |
4200× 1700× 2350mm (just for reference) |
|
2. Main technical data of engine |
||
|
Cummins engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling. |
||
| 2.1 |
Brand |
CUMMINS |
| 2.2 |
Model |
KTA38-DM |
| 2.3 |
Prime power |
880KW |
| 2.4 |
Governor type |
Electronic |
| 2.5 |
Configuration |
4 cycle, 12 cylinder in line |
| 2.6 |
Cooling method |
By heater exchanger |
| 2.7 |
Bore/Stroke |
159× 159 mm |
| 2.8 |
Displacement |
37.5L |
| 2.9 |
Starting method |
Electric |
| 2.10 |
Fuel consumption |
214g/kw. h |
|
3. Main technical data of alternator |
||
|
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. |
||
| 3.1 |
Brand |
MARATHON |
| 3.2 |
Model |
MX-H-800-4 |
| 3.3 |
Prime power |
800KW |
| 3.4 |
Configuration |
Brushless, self-exciting |
| 3.5 |
Prime voltage |
230V/400V |
| 3.6 |
Frequency |
50 HZ |
| 3.7 |
Power factor |
0.8(lagging) |
| 3.8 |
Phase/wire |
3 phase 4 wires |
| 3.9 |
Isolation |
H |
| Prod Model: | CCFJ800J |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: 230/400V: | Output Type: AC Three Phase |
| Rated Current: 1404A: | Frequency: 50Hz/1500rmp |
| Cooling Method: | Water Cooling |
| Stroke: | Four Stroke |
| Installation Method: | Fixed |
| Type: | Self-Starting Diesel Generator |
